Hydr. układ kier./przewody oleju for BMW MINI R50 Cooper (2004)

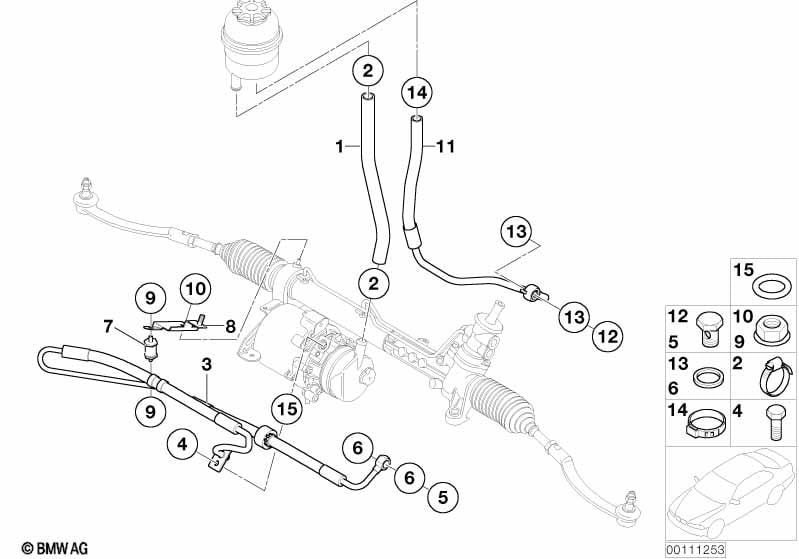

This Hydr. układ kier./przewody oleju technical drawing provides a detailed breakdown of the assembly for the MINI R50 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2004.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Przewód ssący | 1 | 32416754498 | $53.65 | +podst | Shop at ECS Tuning | ||||
| 02 | Opaska na węże | D=20,9-24,1 | 2 | 32111131345 | $2.12 | Shop at ECS Tuning | ||||
| 03 | Przewód elastyczny ciśnieniowy | 1 | 32416781751 | $254.92 | Shop at ECS Tuning | |||||
| 04 | Śruba sześciokątna | M8X20-8.8ZNS3 | 1 | 07119904401 | $0.38 | Shop at ECS Tuning | ||||
| 05 | Śruba drążona z zaworem zwrotnym | M14X1,5X27,4 | 1 | 32416781261 | $10.02 | Shop at ECS Tuning | ||||
| 06 | Pierścień uszczelniający | A14X20-CUSN | 2 | 11/2007 | 32411093596 | $0.31 | Shop at ECS Tuning | |||
| 06 | Pierścień uszczelniający | A14X18-CUSN | 2 | 07119906464 | $0.25 | Shop at ECS Tuning | ||||
| 10 | Nakrętka z podkładką | M6-8-ZNNIV SI | 1 | 07119905949 | $0.24 | Shop at ECS Tuning | ||||
| 11 | Przewód powrotny | 1 | 32416781744 | $61.05 | Shop at ECS Tuning | |||||
| 12 | Śruba drążona | M16X28 | 1 | 11/2007 | 32416852470 | Shop at ECS Tuning | ||||
| 12 | Śruba drążona | M16X28 | 1 | 32416852470 | Shop at ECS Tuning | |||||
| 13 | Pierścień uszczelniający | A16X22-CUSN | 2 | 11/2007 | 32411093597 | $0.27 | Shop at ECS Tuning | |||
| 13 | Pierścień uszczelniający | A16X20-CUSN | 2 | 07119906463 | $0.33 | Shop at ECS Tuning | ||||
| 14 | Opaska na węże | D=16,6-20MM | 1 | 16121180242 | $1.08 | Shop at ECS Tuning | ||||
| 15 | O-Ring | 8X2 NBR-90-10 | 1 | 32416762724 | $0.81 | Shop at ECS Tuning |
Uwagi
- +podst = plus opłata podstawowa (możliwość zwrócenia starej części).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW MINI R50 Cooper Hydr. układ kier./przewody oleju?
- This technical diagram illustrates the Hydr. układ kier./przewody oleju within the Układ kierowniczy group for the MINI R50 Cooper produced during 2004. It provides a detailed exploded view of the components, identifying key parts such as the Przewód ssący (Part #32416754498).
- Which models use the hardware listed in this Hydr. układ kier./przewody oleju?
- The hardware and components featured in the Hydr. układ kier./przewody oleju are specific to the MINI R50 Cooper produced during 2004. These technical specifications ensure that parts like the Przewód ssący (32416754498) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Hydr. układ kier./przewody oleju assembly?
- Each item in the Hydr. układ kier./przewody oleju corresponds to the numbered list below the illustration. For the MINI R50 Cooper, you can identify the Przewód ssący by locating its position on the schematic, which then links to the official BMW part number 32416754498 for the Układ kierowniczy section.
