Kol. kier., elektr. reg./Elementy dod. for BMW 7 Series E65 745i (2003)

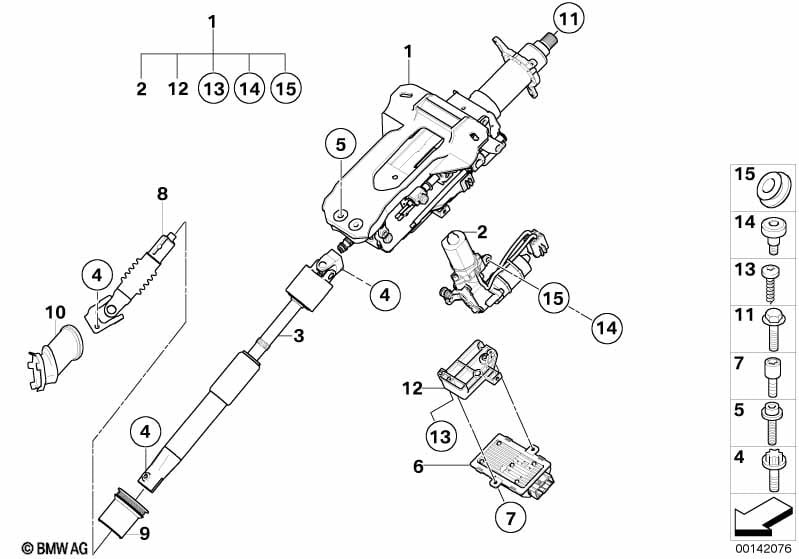

This Kol. kier., elektr. reg./Elementy dod. technical drawing provides a detailed breakdown of the assembly for the 7 Series E65 745i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Kolumna kierownicy w pełni elektryczna | 1 | 32306780899 | $1799.33 | Shop at ECS Tuning | |||||
| 02 | Napęd elektr. reg. kolumny kierowniczej | 1 | 67646912120 | $374.97 | Shop at ECS Tuning | |||||
| 03 | Przegub kolumny kierowniczej dolny | 1 | 03/2003 | 32306757495 | $319.18 | Shop at ECS Tuning | ||||
| 04 | Śruba torx | M8X33 | 3 | 32306778609 | $0.67 | Shop at ECS Tuning | ||||
| 05 | Śruba z podkładką | M8X28MM | 4 | 32306756112 | $0.91 | Shop at ECS Tuning | ||||
| 06 | Sterownik kolumny kierownicy | CIM | 1 | 32306788716 | $399.00 | Shop at ECS Tuning | ||||
| 07 | Wkręt do tworz. szt. | TS5X12 | 2 | 07129904424 | $0.25 | Shop at ECS Tuning | ||||
| 08 | Przegub krzyżowy z rurą falistą | 1 | 32306780900 | $88.38 | Shop at ECS Tuning | |||||
| 09 | Pierścień plastikowy | 1 | 32306756512 | $6.89 | Shop at ECS Tuning | |||||
| 10 | Osłona elastyczna | 1 | 32306753358 | $34.39 | Zakończono | Shop at ECS Tuning | ||||
| 11 | Śruba sześciokątna | M12 | 1 | 32311159951 | $3.42 | Shop at ECS Tuning | ||||
| 12 | Uchwyt sterownika kolumny kierownicy | 1 | 32306760293 | $20.83 | Shop at ECS Tuning | |||||
| 13 | Blachowkręt | ST4,8X16-C-ZNS3 | 2 | 07119903612 | $0.76 | Shop at ECS Tuning | ||||
| 14 | Śruba z kołnierzem | M6 | 3 | 32306760422 | $4.98 | Shop at ECS Tuning | ||||
| 15 | Łożysko plastikowe | 3 | 32306760423 | $8.00 | Shop at ECS Tuning |
Uwagi
- Zakończono = część wycofana z produkcji.
