Zbiornik oleju/elem. poj./Dynamic Drive for BMW 7 Series E65 745i (2003)

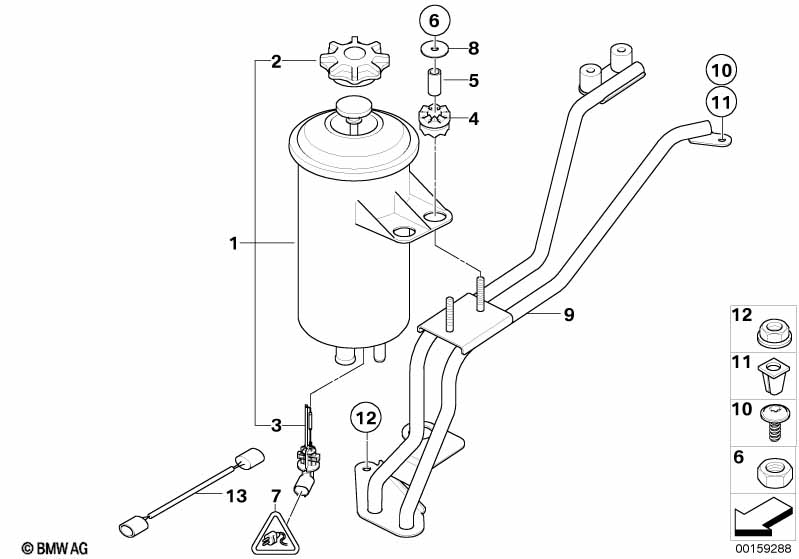

This Zbiornik oleju/elem. poj./Dynamic Drive technical drawing provides a detailed breakdown of the assembly for the 7 Series E65 745i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Zbiornik oleju | 1 | 32416782538 | $74.98 | Shop at ECS Tuning | |||||
| 02 | Pokrywa | 1 | 32411092649 | $16.03 | Shop at ECS Tuning | |||||
| 03 | Czujnik poziomu płynu chłodz. | 1 | 17137553919 | $17.42 | Shop at ECS Tuning | |||||
| 04 | Łożysko gumowe | 3 | 02/2006 | 34511162818 | $2.57 | Shop at ECS Tuning | ||||
| 04 | Łożysko gumowe | 3 | 32416772178 | $2.93 | Shop at ECS Tuning | |||||
| 05 | Tuleja dystansowa | ZNS3 | 2 | 07146977328 | $1.21 | Shop at ECS Tuning | ||||
| 06 | Nakrętka sześciokątna | M6-8-ZNS3 | 2 | 03/2005 | 07119905128 | $0.44 | Shop at ECS Tuning | |||
| 07 | Uniwers. obudowa gniazda niekod. | 2 POL. | 1 | 07/2008 | 61138795954 | Shop at ECS Tuning | ||||
| tylko w połączeniu z | ||||||||||
| -- | Styk tulejowy MQS ELA z kablem | 0,35-0,5 MM² AG | X | 07/2008 | 61130056961 | Shop at ECS Tuning | ||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E65 745i Zbiornik oleju/elem. poj./Dynamic Drive?
- This technical diagram illustrates the Zbiornik oleju/elem. poj./Dynamic Drive within the Układ kierowniczy group for the 7 Series E65 745i produced during 2003. It provides a detailed exploded view of the components, identifying key parts such as the Zbiornik oleju (Part #32416782538).
- Which models use the hardware listed in this Zbiornik oleju/elem. poj./Dynamic Drive?
- The hardware and components featured in the Zbiornik oleju/elem. poj./Dynamic Drive are specific to the 7 Series E65 745i produced during 2003. These technical specifications ensure that parts like the Zbiornik oleju (32416782538) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Zbiornik oleju/elem. poj./Dynamic Drive assembly?
- Each item in the Zbiornik oleju/elem. poj./Dynamic Drive corresponds to the numbered list below the illustration. For the 7 Series E65 745i, you can identify the Zbiornik oleju by locating its position on the schematic, which then links to the official BMW part number 32416782538 for the Układ kierowniczy section.
