Pompa wspom. kierow./Dynamic Drive for BMW 7 Series E65 745i (2003)

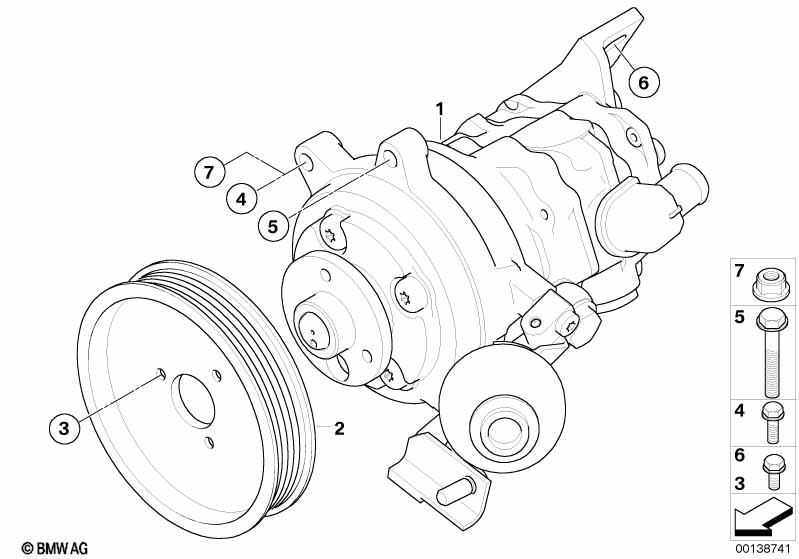

This Pompa wspom. kierow./Dynamic Drive technical drawing provides a detailed breakdown of the assembly for the 7 Series E65 745i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Pompa podwójna | LUK | 1 | 09/2003 | 32416765307 | $1091.66 | +podst | Shop at ECS Tuning | ||
| 02 | Koło pasowe | D=108.5MM | 1 | 09/2003 | 32421439232 | $185.16 | Shop at ECS Tuning | |||
| 03 | Śruba z podkładką | M8X14-10.9 | 3 | 09/2003 | 32427574840 | $0.62 | Shop at ECS Tuning | |||
| 04 | Śruba z podkładką | M8X35-U1 | 1 | 09/2003 | 05/2004 | 07119905533 | $0.44 | Shop at ECS Tuning | ||
| 05 | Śruba z podkładką | M8X115-U1-8.8 | 1 | 09/2003 | 07119906142 | $1.95 | Shop at ECS Tuning | |||
| 06 | Śruba z łbem walcowym | M8X25-U1-8.8 | 1 | 09/2003 | 07119906143 | $1.64 | Shop at ECS Tuning |
Uwagi
- +podst = plus opłata podstawowa (możliwość zwrócenia starej części).
