Wspomaganie układu kier. Servotronic for BMW 7 Series E32 740i (1992)

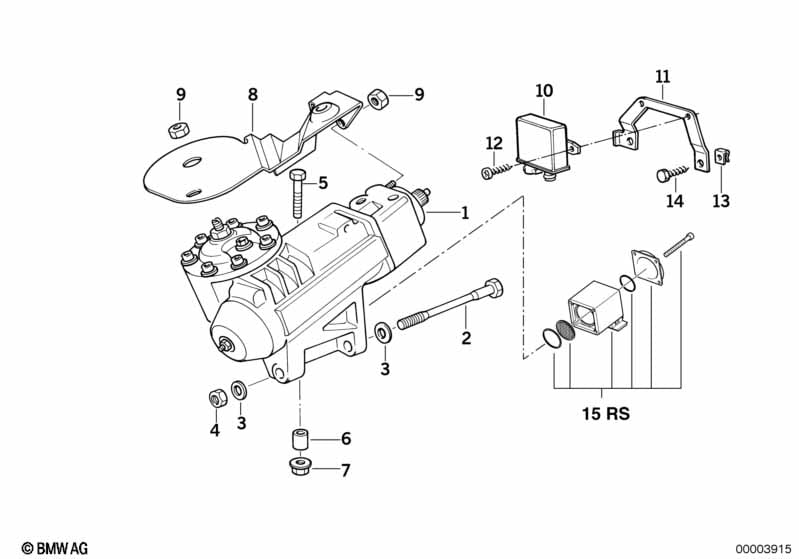

This Wspomaganie układu kier. Servotronic technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 740i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1992.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | RP hydraul.przekł.kier.Servotronic | 1 | 32131138687 | $1964.16 | Zakończono | Shop at ECS Tuning | ||||
| 01 | RP REMAN hydr.przekł.kier.Servotronic | 1 | 32131138697 | $2127.10 | Shop at ECS Tuning | |||||
| 02 | Śruba pasowana | 1 | 32131136051 | $5.17 | Zakończono | Shop at ECS Tuning | ||||
| 03 | Podkładka | 12-300 HV-ZNS3 | 2 | 07119904119 | $0.25 | Shop at ECS Tuning | ||||
| 04 | Nakrętka samozabezpieczająca | M12X1,5 | 1 | 32101136023 | $1.52 | Shop at ECS Tuning | ||||
| 05 | Śruba sześciokątna | M10X90 | 1 | 07119900237 | $1.98 | Shop at ECS Tuning | ||||
| 06 | Tulejka | 1 | 32101134058 | $11.20 | Zakończono | Shop at ECS Tuning | ||||
| 07 | Nakrętka samozabezpieczająca | M10 | 1 | 32101133077 | $2.50 | Zakończono | Shop at ECS Tuning | |||
| 08 | Osłona termiczna | 1 | 32131140938 | $17.92 | Zakończono | Shop at ECS Tuning | ||||
| 10 | Sterownik Servotronic | 1 | 32431162705 | $213.23 | Shop at ECS Tuning | |||||
| tylko w połączeniu z | ||||||||||
| -- | Zestaw naprawczy | 1 | 32431162736 | $81.04 | Shop at ECS Tuning | |||||
| 11 | Uchwyt sterownika | 1 | 61131382882 | $5.08 | Shop at ECS Tuning | |||||
| 12 | Blachowkręt | M4 X 7 | 2 | 61131391232 | $0.08 | Zakończono | Shop at ECS Tuning | |||
| 13 | Nakrętka | B3,9 | 2 | 51131914097 | $1.03 | Shop at ECS Tuning | ||||
| 14 | Blachowkręt | ST3,9X16-C-Z2 | 2 | 07119916808 | $0.11 | Shop at ECS Tuning | ||||
| 15 | Przetwornik Servotronic | 1 | 32411134770 | $239.28 | Shop at ECS Tuning | |||||
Uwagi
- Zakończono = część wycofana z produkcji.
