Przewodu olejowe ASC+T for BMW 7 Series E32 750i (1989)

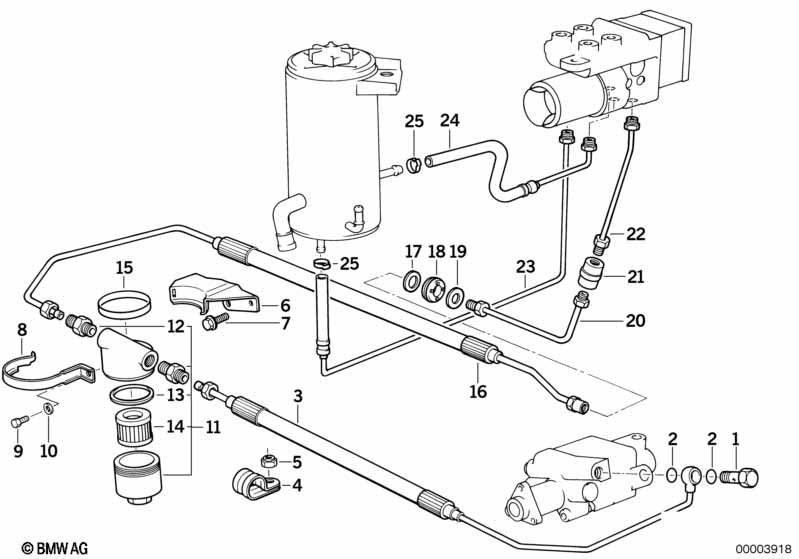

This Przewodu olejowe ASC+T technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 750i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1989.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Śruba drążona | M12X1,5 | 1 | 32411140945 | $6.42 | Shop at ECS Tuning | ||||
| 02 | Pierścień uszczelniający | A12X17-CU | 1 | 07119963151 | $0.57 | Shop at ECS Tuning | ||||
| 03 | Przewód elastyczny ciśnieniowy | 1 | 32411137562 | $192.00 | Zakończono | Shop at ECS Tuning | ||||
| 04 | Obejma | D=22/6,4 | 1 | 64531357128 | $1.91 | Shop at ECS Tuning | ||||
| 05 | Nakrętka samozabezpieczająca | M6-10 ZN | 1 | 04/1994 | 07129922705 | $0.27 | Zakończono | Shop at ECS Tuning | ||
| 05 | Nakrętka samozabezpieczająca | M6 ZNNIV SI | 1 | 07147575163 | $0.25 | Shop at ECS Tuning | ||||
| 06 | Wspornik filtra ASC+T | 1 | 34511159872 | $4.55 | Shop at ECS Tuning | |||||
| 08 | Taśma zaciskowa | 1 | 34511159874 | $3.40 | Zakończono | Shop at ECS Tuning | ||||
| 09 | Śruba sześciokątna | M5X20-8.8 ZNS | 1 | 07119913116 | $1.20 | Shop at ECS Tuning | ||||
| 10 | Podkładka | 10X5,3X1-200 HV | 1 | 07119904206 | Shop at ECS Tuning | |||||
| 10 | Podkładka | 5.3-140 HV-ZNS | 1 | 07119936439 | $0.40 | Shop at ECS Tuning | ||||
| 11 | Filtr oleju | 1 | 34511159665 | $314.22 | Shop at ECS Tuning | |||||
| 12 | Króciec gwintowany | 2 | 34511159381 | $43.37 | Shop at ECS Tuning | |||||
| 13 | O-Ring | 40X3 | 1 | 34511159421 | $3.07 | Shop at ECS Tuning | ||||
| 14 | Wkład filtra | 1 | 34511159666 | $62.30 | Zakończono | Shop at ECS Tuning | ||||
| 15 | Pierścień tłumiący | 1 | 34511159384 | $2.55 | Shop at ECS Tuning | |||||
| 16 | Przewód elastyczny ciśnieniowy | 1 | 32411137729 | $210.92 | Zakończono | Shop at ECS Tuning | ||||
| 17 | Podkładka | 10X25X1,5-ZNS3 | 1 | 37131114028 | $0.80 | Shop at ECS Tuning | ||||
| 18 | Końcówka gumowa | 1 | 34306865954 | Shop at ECS Tuning | ||||||
| 19 | Podkładka | 14X25X2-ZNS3 | 1 | 34301163613 | $0.83 | Shop at ECS Tuning | ||||
| 20 | Przewód rurowy | M10/M10-380MM | 1 | 34326755567 | $7.60 | Shop at ECS Tuning | ||||
| 22 | Przewód rurowy | M10/M12-144MM | 1 | 34326755490 | $5.13 | Shop at ECS Tuning | ||||
| 23 | Przewód powrotny | 1 | 37131159429 | $48.26 | Shop at ECS Tuning | |||||
| 25 | Opaska na węże | D=10,8-13,3 | 1 | 32411156956 | $0.62 | Shop at ECS Tuning |
Uwagi
- Zakończono = część wycofana z produkcji.
