M Kier. sport. z pod. pow. wielofunk. for BMW 1 Series F20 120d (2013)

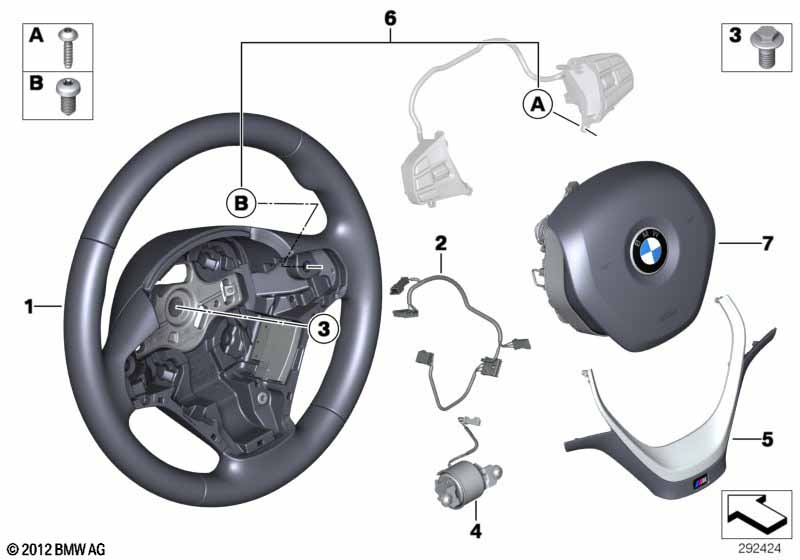

This M Kier. sport. z pod. pow. wielofunk. technical drawing provides a detailed breakdown of the assembly for the 1 Series F20 120d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2013.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | BMW zaleca jako zabezpieczenie przed kradzieżą Security-Kit TNR 2 464 228. Dla samochodów z Sportowa automatyczna skrzynia biegów i M Kierownica skórzana |
S2TBA=Nie S710A=Tak |
||||||||
| 01 | M Kierownica sportowa, skórzana | SCHWARZ | 1 | 03/2014 | 32307845877 | Shop at ECS Tuning | ||||
| 02 | Przewód połączeniowy kierownicy | 1 | 03/2014 | 32309483018 | Shop at ECS Tuning | |||||
| Dla samochodów z Driving Assistant |
S5ASA=Tak |
|||||||||
| 02 | Przewód połączeniowy kierownicy | 1 | 07/2013 | 03/2014 | 32309483020 | Shop at ECS Tuning | ||||
| 03 | Śruba Torx hermetyzowana | M14X1.5X25 ZNS3 | 1 | 07149890645 | Shop at ECS Tuning | |||||
| Dla samochodów z Driving Assistant |
S5ASA=Tak |
|||||||||
| 04 | Generator drgań | ASE | 1 | 07/2013 | 03/2014 | 32336787451 | Shop at ECS Tuning | |||
| 05 | Osłona kierown. M czarna/perlglanz chrom | 1 | 03/2014 | 32307845876 | Shop at ECS Tuning | |||||
| 06 | Kpl. części mocujących | MFL | 1 | 03/2014 | 32306856230 | Shop at ECS Tuning | ||||
| 07 | Poduszka powietrzna kierowcy | 1 | 03/2014 | 32306791332 | Shop at ECS Tuning | |||||
