Przekładnia tylnej osi-zestaw uszczelek for BMW 7 Series E65 745i (2003)

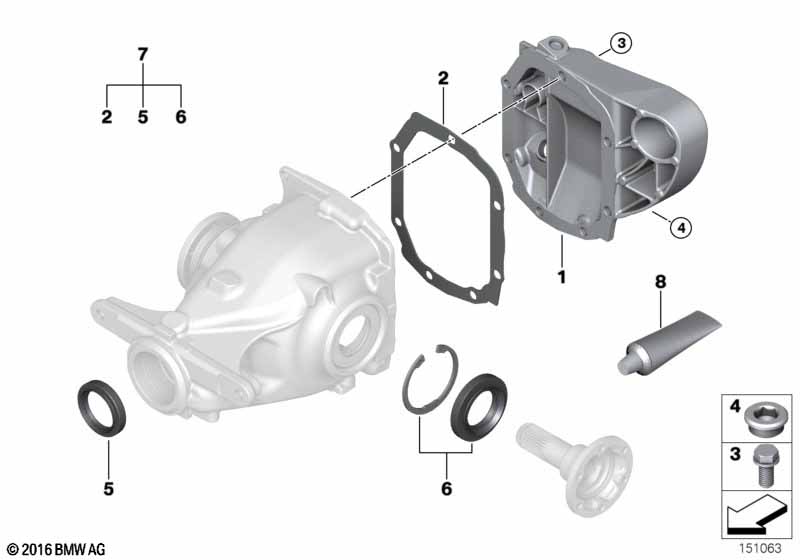

This Przekładnia tylnej osi-zestaw uszczelek technical drawing provides a detailed breakdown of the assembly for the 7 Series E65 745i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Pokrywa | TYP 215K/220K | 1 | 33117519661 | $134.97 | Zakończono | Shop at ECS Tuning | |||
| Przestrzegać instr. napr. | ||||||||||
| 02 | Uszczelka | TYP 215K/220K | 1 | 33111214448 | $2.24 | Zakończono | Shop at ECS Tuning | |||
| Przestrzegać instr. napr. | ||||||||||
| 03 | Nakrętka sześciokątna | M10X25-10.9ZNS3 | 7 | 33117521292 | $1.64 | Shop at ECS Tuning | ||||
| Przestrzegać instr. napr. | ||||||||||
| 03 | Nakrętka sześciokątna | M10X75-10.9ZNS3 | 1 | 33117521293 | $2.90 | Shop at ECS Tuning | ||||
| Przestrzegać instr. napr. | ||||||||||
| 04 | Śruba zamykająca z o-ringiem | M22X1,5-ZNS3 | 2 | 33117525064 | $3.91 | Shop at ECS Tuning | ||||
| Przestrzegać instr. napr. | ||||||||||
| 05 | Pierścień uszczelniający | 50X78X10 AW 215 | 1 | 33107609536 | Shop at ECS Tuning | |||||
| Przestrzegać instr. napr. | ||||||||||
| 06 | Uszczelniacz z pierśc. zabezp. | 100X50X10 | 2 | 33107505605 | $20.09 | Shop at ECS Tuning | ||||
| Przestrzegać instr. napr. | ||||||||||
| 07 | Zestaw uszczelek przekładni głównej | TYP 215K/220K | 1 | 33101428092 | $85.05 | Zakończono | Shop at ECS Tuning | |||
| Przestrzegać instr. napr. | ||||||||||
| 08 | Uszczelniacz płynny Loctite 5970 | 50ML | 1 | 83190404517 | $23.40 | Shop at ECS Tuning | ||||
| Przestrzegać instr. napr. | ||||||||||
Uwagi
- Zakończono = część wycofana z produkcji.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E65 745i Przekładnia tylnej osi-zestaw uszczelek?
- This technical diagram illustrates the Przekładnia tylnej osi-zestaw uszczelek within the Tylna oś group for the 7 Series E65 745i produced during 2003. It provides a detailed exploded view of the components, identifying key parts such as the Pokrywa (Part #33117519661).
- Which models use the hardware listed in this Przekładnia tylnej osi-zestaw uszczelek?
- The hardware and components featured in the Przekładnia tylnej osi-zestaw uszczelek are specific to the 7 Series E65 745i produced during 2003. These technical specifications ensure that parts like the Pokrywa (33117519661) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Przekładnia tylnej osi-zestaw uszczelek assembly?
- Each item in the Przekładnia tylnej osi-zestaw uszczelek corresponds to the numbered list below the illustration. For the 7 Series E65 745i, you can identify the Pokrywa by locating its position on the schematic, which then links to the official BMW part number 33117519661 for the Tylna oś section.
