Półoś tylnego mostu/łożyskowanie koła for BMW 7 Series E65 745i (2003)

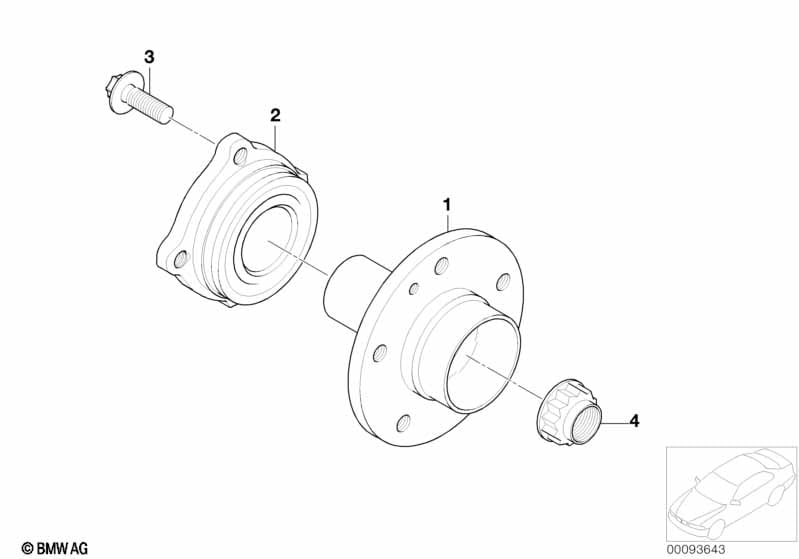

This Półoś tylnego mostu/łożyskowanie koła technical drawing provides a detailed breakdown of the assembly for the 7 Series E65 745i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Piasta z kołnierzem mocującym | 2 | 03/2005 | 33416753100 | $121.11 | Zakończono | Shop at ECS Tuning | |||
| 02 | Łożysko kulkowe poprzeczno-wzdłużne | 45X80X37 | 2 | 33411095238 | $94.13 | Shop at ECS Tuning | ||||
| Konieczne do naprawy | ||||||||||
| -- | Nakrętka z kołnierzem | M27X1,5 | 2 | 33411133785 | $10.86 | Shop at ECS Tuning | ||||
| -- | Śruba torx | M12X1,5X35 ZNS3 | 8 | 33406765432 | $1.63 | Shop at ECS Tuning | ||||
| 03 | Śruba torx | M12X1,5X35 ZNS3 | 8 | 33406765432 | $1.63 | Shop at ECS Tuning | ||||
| 04 | Nakrętka z kołnierzem | M27X1,5 | 2 | 33411133785 | $10.86 | Shop at ECS Tuning | ||||
Uwagi
- Zakończono = część wycofana z produkcji.
