Kolumna McPhaersona tylna elementy dod. for BMW 7 Series E65 745i (2003)

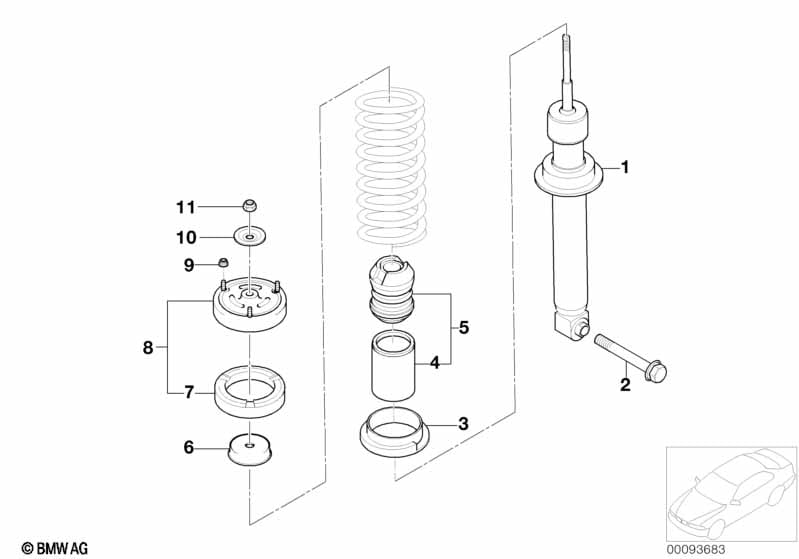

This Kolumna McPhaersona tylna elementy dod. technical drawing provides a detailed breakdown of the assembly for the 7 Series E65 745i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Przy wymianie kolumny amortyzatora niezbędna jest następująca część: Amortyzator dodatkowy tylny |
|||||||||
| 01 | Amortyzator tylny | 2 | 33526786542 | $360.68 | Shop at ECS Tuning | |||||
| Konieczne do naprawy | ||||||||||
| -- | Nakrętka samozabezpieczająca | M12X1.5-05 ZNS3 | 2 | 32216769539 | $0.83 | Shop at ECS Tuning | ||||
| -- | Śruba sześciokątna | M14X1,5X105 | 2 | 33506779488 | $4.09 | Shop at ECS Tuning | ||||
| Dla samochodów z Sportowe dostosowanie podwozia |
S226A=Tak |
|||||||||
| 01 | Amortyzator tylny | 2 | 33526786543 | $396.02 | Shop at ECS Tuning | |||||
| Konieczne do naprawy | ||||||||||
| -- | Nakrętka samozabezpieczająca | M12X1.5-05 ZNS3 | 2 | 32216769539 | $0.83 | Shop at ECS Tuning | ||||
| -- | Śruba sześciokątna | M14X1,5X105 | 2 | 33506779488 | $4.09 | Shop at ECS Tuning | ||||
| 02 | Śruba sześciokątna | M14X1,5X105 | 2 | 33506779488 | $4.09 | Shop at ECS Tuning | ||||
| 03 | Podkładka sprężyny dolna | 2 | 33531133671 | $8.38 | Shop at ECS Tuning | |||||
| 04 | Rura ochronna | 2 | 33536758557 | $5.58 | Zakończono | Shop at ECS Tuning | ||||
| 05 | Amortyzator dodatkowy tylny | 2 | 33536758090 | $17.03 | Shop at ECS Tuning | |||||
| Dla samochodów z Sportowe dostosowanie podwozia |
S226A=Tak |
|||||||||
| 05 | Amortyzator dodatkowy tylny | 2 | 03/2003 | 33536762989 | $17.03 | Shop at ECS Tuning | ||||
| 06 | Gniazdo podporowe | 2 | 33526758283 | $17.18 | Shop at ECS Tuning | |||||
| 07 | Podkładka sprężyny górna | 2 | 33536753765 | $8.38 | Shop at ECS Tuning | |||||
| 08 | Gniazdo amortyzatora | 2 | 33526779611 | $61.80 | Shop at ECS Tuning | |||||
| 09 | Nakrętka samozabezp. z kołnierzem | M8-10 ZNS3 | 6 | 07119905374 | Shop at ECS Tuning | |||||
| 10 | Płytka | 2 | 33526779415 | $0.87 | Shop at ECS Tuning | |||||
| 11 | Nakrętka samozabezpieczająca | M12X1.5-05 ZNS3 | 2 | 32216769539 | $0.83 | Shop at ECS Tuning | ||||
Uwagi
- Zakończono = część wycofana z produkcji.
