Elementy dod./Dynamic Drive for BMW 5 Series E60 LCI 550i (2005)

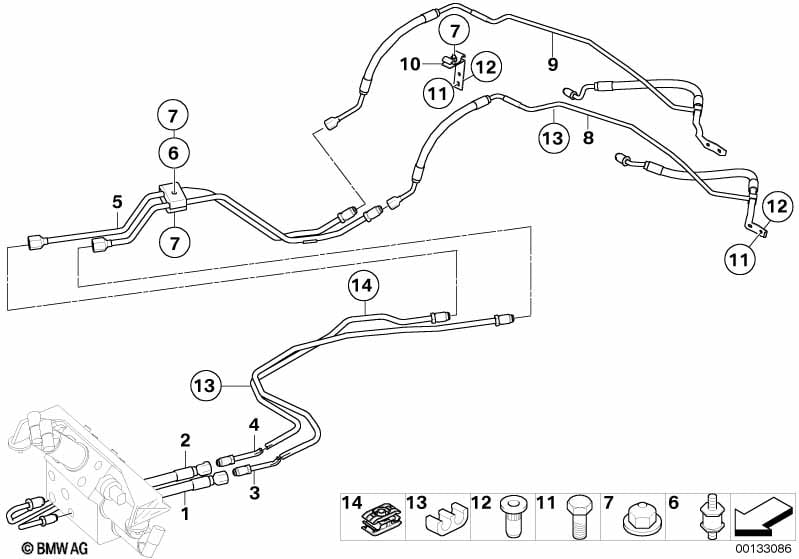

This Elementy dod./Dynamic Drive technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 LCI 550i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2005.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Dla samochodów z Dynamic Drive |
S229A=Tak |
||||||||
| 01 | Przewód ciśnieniowy bloku zaworów | M14X1,5 | 1 | 37136761191 | $51.85 | Shop at ECS Tuning | ||||
| 02 | Przewód ciśnieniowy bloku zaworów | M14X1,5/M16X1,5 | 1 | 37136761192 | $51.85 | Shop at ECS Tuning | ||||
| 03 | Przewód elastyczny ciśnieniowy | 1 | 37106780568 | $45.58 | Shop at ECS Tuning | |||||
| 04 | Przewód elastyczny ciśnieniowy | 1 | 37106780569 | $226.77 | Shop at ECS Tuning | |||||
| 05 | Przewód elastyczny ciśnieniowy | M14X1,5 | 1 | 37136766231 | $74.80 | Shop at ECS Tuning | ||||
| 07 | Nakrętka z podkładką | M6-8-ZNNIV SI | 1 | 07119905949 | $0.24 | Shop at ECS Tuning | ||||
| 08 | Przewód ciśnieniowy, silnik | M14X1,5/M16X1,5 | 1 | 37106769837 | $129.37 | Shop at ECS Tuning | ||||
| 09 | Przewód ciśnieniowy, silnik | 1 | 37106769838 | $129.37 | Shop at ECS Tuning | |||||
| 10 | Uchwyt | 1 | 37136761208 | $4.47 | Shop at ECS Tuning | |||||
| 11 | Śruba z podkładką | M6X22-U1-ZNS3 | 4 | 07119905485 | $0.47 | Shop at ECS Tuning | ||||
| 12 | Nakrętka nitu z łbem płaskim | M6 | 4 | 07146989330 | $1.25 | Shop at ECS Tuning | ||||
| 13 | Uchwyt przewodu | SCHWARZ | 3 | 37206774051 | $1.38 | Shop at ECS Tuning | ||||
| 14 | Uchwyt przewodu | 3 | 37206769202 | $6.83 | Shop at ECS Tuning | |||||
