Stabilizator tylny / Dynamic Drive for BMW 7 Series E65 745i (2003)

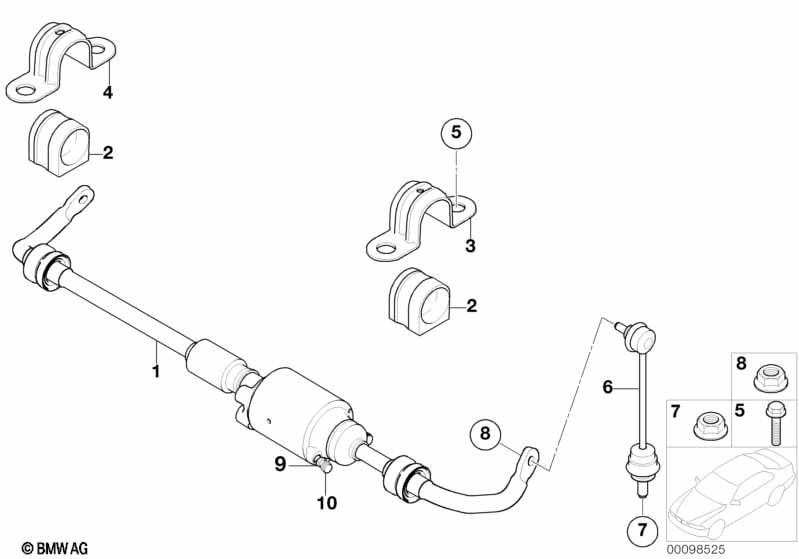

This Stabilizator tylny / Dynamic Drive technical drawing provides a detailed breakdown of the assembly for the 7 Series E65 745i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Aktywny stabilizator | 1 | 37126780010 | $1460.78 | Shop at ECS Tuning | |||||
| 02 | Poduszka gumowa stabilizatora | 2 | 33556753915 | $15.18 | Shop at ECS Tuning | |||||
| Konieczne do naprawy | ||||||||||
| -- | Narzędzie montażowe | 250ML | 2 | 83192405829 | Shop at ECS Tuning | |||||
| 03 | Pałąk mocujący stabilizator, lewy | 1 | 33556779491 | $6.61 | Shop at ECS Tuning | |||||
| 04 | Pałąk mocujący stabilizator, prawy | 1 | 33556779492 | $6.61 | Shop at ECS Tuning | |||||
| 05 | Śruba sześciokątna z kołnierzem | M10X30-10.9ZNS3 | 4 | 07119904141 | $0.62 | Shop at ECS Tuning | ||||
| 06 | Łącznik stabilizatora | 2 | 33506781539 | $39.35 | Shop at ECS Tuning | |||||
| Konieczne do naprawy | ||||||||||
| -- | Nakrętka samozabezp. z kołnierzem | M12X1,5-10 ZNS3 | 2 | 33326760374 | $1.90 | Shop at ECS Tuning | ||||
| -- | Nakrętka sześciokątna z kołnierzem | M10-10 ZNS3 | 2 | 33306760587 | $0.78 | Shop at ECS Tuning | ||||
| 07 | Nakrętka samozabezp. z kołnierzem | M12X1,5-10 ZNS3 | 2 | 33326760374 | $1.90 | Shop at ECS Tuning | ||||
| 08 | Nakrętka samozabezp. z kołnierzem | M12X1,5-10 ZNS3 | 2 | 33326760668 | $0.62 | Shop at ECS Tuning | ||||
| 09 | Zawór odpowietrzający | M10X1 | 1 | 34116768018 | $6.60 | Shop at ECS Tuning | ||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E65 745i Stabilizator tylny / Dynamic Drive?
- This technical diagram illustrates the Stabilizator tylny / Dynamic Drive within the Tylna oś group for the 7 Series E65 745i produced during 2003. It provides a detailed exploded view of the components, identifying key parts such as the Aktywny stabilizator (Part #37126780010).
- Which models use the hardware listed in this Stabilizator tylny / Dynamic Drive?
- The hardware and components featured in the Stabilizator tylny / Dynamic Drive are specific to the 7 Series E65 745i produced during 2003. These technical specifications ensure that parts like the Aktywny stabilizator (37126780010) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Stabilizator tylny / Dynamic Drive assembly?
- Each item in the Stabilizator tylny / Dynamic Drive corresponds to the numbered list below the illustration. For the 7 Series E65 745i, you can identify the Aktywny stabilizator by locating its position on the schematic, which then links to the official BMW part number 37126780010 for the Tylna oś section.
