Elementy dod./Dynamic Drive for BMW 7 Series E65 745i (2003)

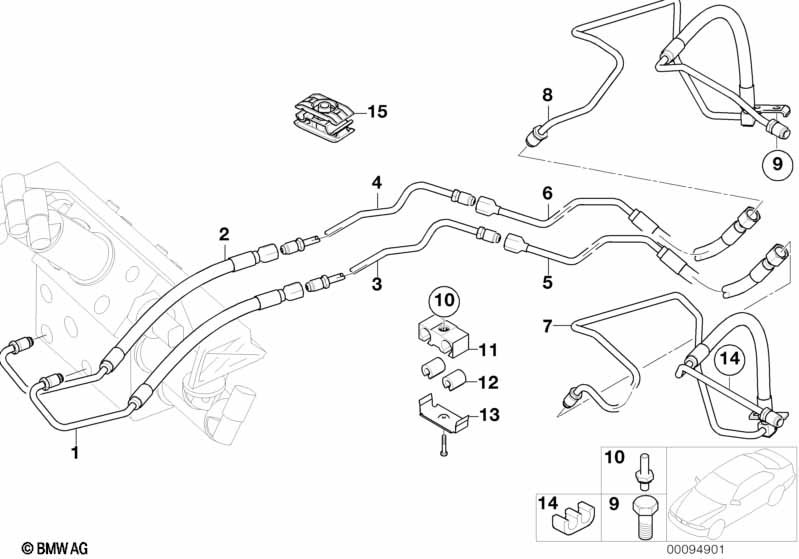

This Elementy dod./Dynamic Drive technical drawing provides a detailed breakdown of the assembly for the 7 Series E65 745i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Przewód ciśnieniowy bloku zaworów | M14X1,5 | 1 | 37136753031 | $44.17 | Shop at ECS Tuning | ||||
| 02 | Przewód ciśnieniowy bloku zaworów | M14X1,5/M16X1,5 | 1 | 37136753032 | $44.17 | Shop at ECS Tuning | ||||
| 03 | Przewód elastyczny ciśnieniowy | M14X1,5 | 1 | 37106780556 | $44.17 | Shop at ECS Tuning | ||||
| 04 | Przewód elastyczny ciśnieniowy | M14X1,5 | 1 | 37106780557 | $45.55 | Shop at ECS Tuning | ||||
| 05 | Przewód elastyczny ciśnieniowy | M14X1,5 | 1 | 37136753037 | $44.17 | Shop at ECS Tuning | ||||
| 06 | Przewód elastyczny ciśnieniowy | M14X1,5/M16X1,5 | 1 | 37136753038 | $44.17 | Shop at ECS Tuning | ||||
| 07 | Przewód ciśnieniowy, silnik | M14X1,5 | 1 | 37136753041 | $69.15 | Shop at ECS Tuning | ||||
| 08 | Przewód ciśnieniowy, silnik | M16X1,5 | 1 | 37136753042 | $69.15 | Shop at ECS Tuning | ||||
| 09 | Śruba z podkładką | M6X22-U1-ZNS3 | 2 | 07119905485 | $0.47 | Shop at ECS Tuning | ||||
| 10 | Adapter | 3 | 37206778068 | $3.35 | Shop at ECS Tuning | |||||
| 11 | Uchwyt | 3 | 16121179155 | $3.62 | Zakończono | Shop at ECS Tuning | ||||
| 12 | Odbojnik gumowy | 6 | 16121178832 | $2.08 | Shop at ECS Tuning | |||||
| 13 | Uchwyt | 3 | 37206778082 | $1.41 | Shop at ECS Tuning | |||||
| 14 | Uchwyt przewodu | SCHWARZ | 2 | 37206774051 | $1.38 | Shop at ECS Tuning | ||||
| 15 | Uchwyt przewodu | 4 | 37206753047 | $6.38 | Zakończono | Shop at ECS Tuning |
Uwagi
- Zakończono = część wycofana z produkcji.
