Pompa hamulcowa for BMW 1502-2002tii 1602

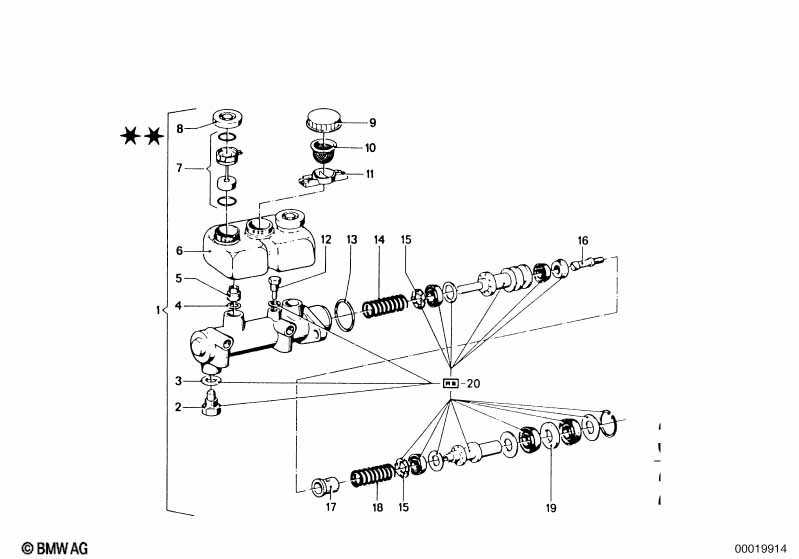

This Pompa hamulcowa technical drawing provides a detailed breakdown of the assembly for the 1502-2002tii 1602. It includes part names, part numbers and all associated mounting hardware.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Pompa hamulcowa | D=20,64MM | 1 | 34311113656 | $356.55 | Zakończono | Shop at ECS Tuning | |||
| 02 | Zawór wstępny | 1 | 34314650332 | $21.70 | Zakończono | Shop at ECS Tuning | ||||
| 04 | Podkładka | 2 | 34314650172 | $1.12 | Shop at ECS Tuning | |||||
| 05 | Zaślepka | 17/8 | 2 | 34311103205 | $3.17 | Shop at ECS Tuning | ||||
| 06 | Zbiornik wyrównawczy | 1 | 34321103476 | Zakończono | Shop at ECS Tuning | |||||
| 07 | Korek z czujnikiem ostrz. | 1 | 34321103477 | $16.11 | Zakończono | Shop at ECS Tuning | ||||
| 08 | Zaślepka | 2 | 34321103481 | $3.11 | Zakończono | Shop at ECS Tuning | ||||
| 09 | Zaślepka | 1 | 34321103484 | Zakończono | Shop at ECS Tuning | |||||
| 10 | Tuleja filtrująca | 1 | 34321102796 | Zakończono | Shop at ECS Tuning | |||||
| 11 | Pokrywa | 1 | 34321103257 | Zakończono | Shop at ECS Tuning | |||||
| 20 | Zestaw naprawczy pompy hamulcowej | D=20,64MM | 1 | 34311113655 | $114.88 | Shop at ECS Tuning |
Uwagi
- Zakończono = część wycofana z produkcji.
