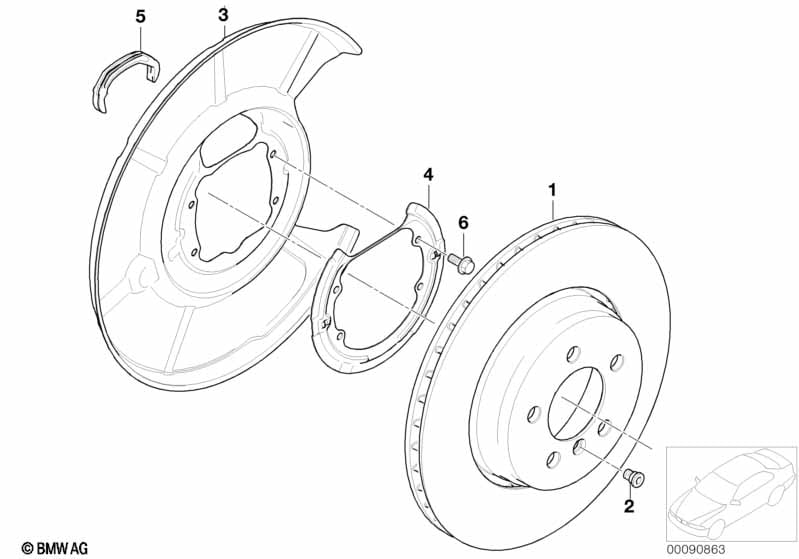

Hamulec tylnego koła-tarcza hamulcowa for BMW 7 Series E65 745i (2003)
This Hamulec tylnego koła-tarcza hamulcowa technical drawing provides a detailed breakdown of the assembly for the 7 Series E65 745i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Tarcza hamulcowa, wentylowana | 345X24 | 2 | 34216864046 | Shop at ECS Tuning | |||||
| Dodatkowo niezbędne są następujące części: - klocki hamulcowe - czujnik klocków hamulcowych - pasta do klocków hamulcowych W samochodach starszych niż 48 miesięcy zaleca się dodatkowo: - wymianę sprężyny dociskowej patrz instrukcja naprawcza! |
||||||||||
| 02 | Śruba imbusowa | M8X14 | 2 | 34211161806 | $1.38 | Shop at ECS Tuning | ||||
| 03 | Osłona lewa | 1 | 34216754629 | $24.40 | Shop at ECS Tuning | |||||
| 03 | Osłona prawa | 1 | 34216754630 | $24.40 | Shop at ECS Tuning | |||||
| 04 | Pierścień mocujący | 2 | 34216777837 | $2.72 | Shop at ECS Tuning | |||||
| 05 | Uszczelka | 2 | 34211166260 | $2.52 | Zakończono | Shop at ECS Tuning | ||||
| 06 | Śruba samozabezp. | M6X14-Z1-8.8-MK | 8 | 34206772121 | $0.43 | Shop at ECS Tuning | ||||
Uwagi
- Zakończono = część wycofana z produkcji.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E65 745i Hamulec tylnego koła-tarcza hamulcowa?
- This technical diagram illustrates the Hamulec tylnego koła-tarcza hamulcowa within the Hamulce group for the 7 Series E65 745i produced during 2003. It provides a detailed exploded view of the components, identifying key parts such as the Tarcza hamulcowa, wentylowana (Part #34216864046).
- Which models use the hardware listed in this Hamulec tylnego koła-tarcza hamulcowa?
- The hardware and components featured in the Hamulec tylnego koła-tarcza hamulcowa are specific to the 7 Series E65 745i produced during 2003. These technical specifications ensure that parts like the Tarcza hamulcowa, wentylowana (34216864046) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Hamulec tylnego koła-tarcza hamulcowa assembly?
- Each item in the Hamulec tylnego koła-tarcza hamulcowa corresponds to the numbered list below the illustration. For the 7 Series E65 745i, you can identify the Tarcza hamulcowa, wentylowana by locating its position on the schematic, which then links to the official BMW part number 34216864046 for the Hamulce section.
