Przewód hamulcowy przedni for BMW 7 Series E65 745i (2003)

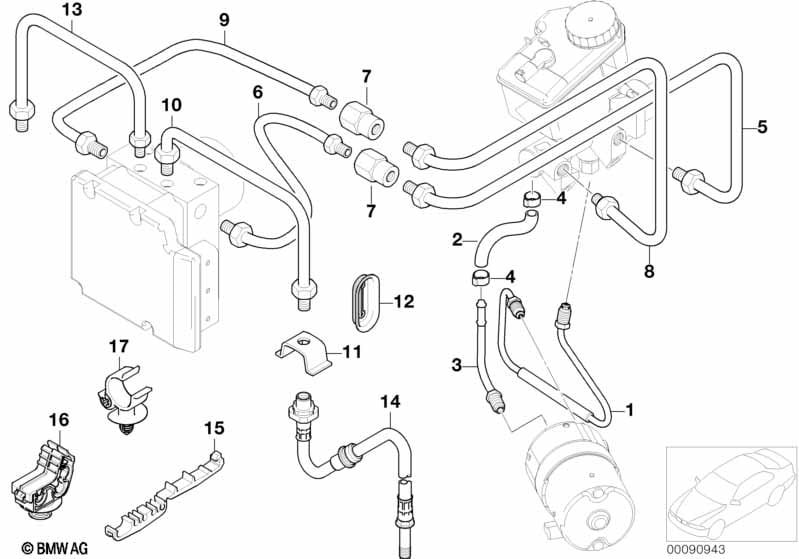

This Przewód hamulcowy przedni technical drawing provides a detailed breakdown of the assembly for the 7 Series E65 745i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Przewód rurowy z wężem ciśnieniowym | M10/M12 | 1 | 34536772623 | $43.53 | Shop at ECS Tuning | ||||
| 02 | Przewód kształtowany | 1 | 34536753583 | $10.67 | Shop at ECS Tuning | |||||
| 03 | Przewód rurowy | M12 | 1 | 34536772625 | $25.02 | Shop at ECS Tuning | ||||
| 04 | Opaska na węże | D=10,8-13,3 | 2 | 32411156956 | $0.62 | Shop at ECS Tuning | ||||
| 05 | Przewód rurowy | M12/M12 | 1 | 34326772611 | $16.72 | Zakończono | Shop at ECS Tuning | |||
| 06 | Przewód rurowy | M12/M12 | 1 | 07/2003 | 34326772613 | $25.02 | Shop at ECS Tuning | |||
| 07 | Element pośredni | M12X1 | 2 | 34326757285 | $4.08 | Shop at ECS Tuning | ||||
| 08 | Przewód rurowy | M12/M12 | 1 | 34326772615 | $16.72 | Shop at ECS Tuning | ||||
| 09 | Przewód rurowy | M12/M12 | 1 | 07/2003 | 12/2006 | 34326772617 | $25.02 | Zakończono | Shop at ECS Tuning | |
| 10 | Przewód rurowy | M10/M12 | 1 | 34326772594 | $11.65 | Shop at ECS Tuning | ||||
| 11 | Sprężynka | 2 | 34341163565 | $0.97 | Shop at ECS Tuning | |||||
| 12 | Końcówka gumowa | 2 | 34331161163 | $1.53 | Shop at ECS Tuning | |||||
| 13 | Przewód rurowy | M10/M12 | 1 | 34326772596 | $16.72 | Shop at ECS Tuning | ||||
| 14 | Przewód hamulcowy elastyczny, przedni | 2 | 34326753610 | $44.96 | Shop at ECS Tuning | |||||
| 15 | Uchwyt przewodu hamulcowego | 6-FACH | 1 | 34321162454 | $1.53 | Shop at ECS Tuning | ||||
| 16 | Uchwyt przewodu hamulcowego | 2 | 12/2006 | 34321166261 | $3.23 | Zakończono | Shop at ECS Tuning | |||
| 17 | Uchwyt przewodu hamulcowego | 1 | 34326756140 | $2.67 | Shop at ECS Tuning |
Uwagi
- Zakończono = część wycofana z produkcji.
