Przewód hamulcowy tylny for BMW 7 Series E65 745i (2003)

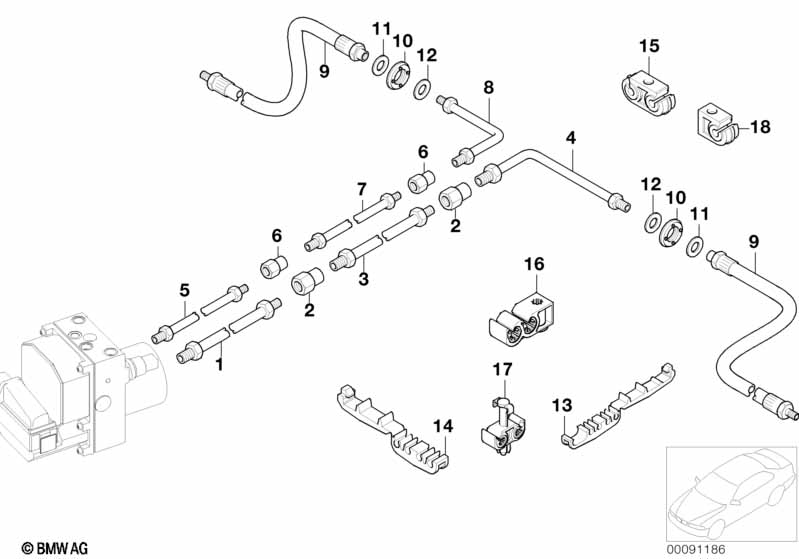

This Przewód hamulcowy tylny technical drawing provides a detailed breakdown of the assembly for the 7 Series E65 745i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Przewód rurowy z wężem ciśnieniowym | M10/M12 | 1 | 34326772597 | $27.70 | Shop at ECS Tuning | ||||
| 02 | Element pośredni | M12X1 | 2 | 34326757285 | $4.08 | Shop at ECS Tuning | ||||
| 03 | Przewód rurowy | M12/M12 | 1 | 34326772600 | $11.65 | Shop at ECS Tuning | ||||
| 04 | Przewód rurowy | M10/M12 | 1 | 34326772608 | $25.02 | Shop at ECS Tuning | ||||
| 05 | Przewód rurowy z wężem ciśnieniowym | M10/M10 | 1 | 34326772598 | $27.70 | Zakończono | Shop at ECS Tuning | |||
| 06 | Element pośredni | M10X1 | 2 | 34326757282 | $4.08 | Shop at ECS Tuning | ||||
| 07 | Przewód rurowy | M10/M10 | 1 | 34326772602 | $27.70 | Zakończono | Shop at ECS Tuning | |||
| 08 | Przewód rurowy | M10/M10 | 1 | 34326772610 | $8.50 | Shop at ECS Tuning | ||||
| 09 | Przewód hamulcowy, elastyczny | 2 | 34321159890 | $53.80 | Shop at ECS Tuning | |||||
| 10 | Końcówka gumowa | 2 | 34306865954 | Shop at ECS Tuning | ||||||
| 11 | Podkładka | 10X25X1,5-ZNS3 | 2 | 37131114028 | $0.80 | Shop at ECS Tuning | ||||
| 12 | Podkładka | 14X25X2-ZNS3 | 2 | 34301163613 | $0.83 | Shop at ECS Tuning | ||||
| 13 | Uchwyt przewodu hamulcowego | 6-FACH | 1 | 34321162454 | $1.53 | Shop at ECS Tuning | ||||
| 15 | Uchwyt przewodu hamulcowego | 3 | 34326880898 | Shop at ECS Tuning | ||||||
| 16 | Zaczep podwójny | 6 | 07/2015 | 34306784201 | $1.63 | Shop at ECS Tuning | ||||
| 16 | Zaczep podwójny | 6 | 34326871117 | Shop at ECS Tuning | ||||||
| 17 | Uchwyt przewodu hamulcowego | 2 | 34321165922 | $1.88 | Shop at ECS Tuning | |||||
| 18 | Uchwyt przewodu hamulcowego | 2 | 34326855500 | Shop at ECS Tuning |
Uwagi
- Zakończono = część wycofana z produkcji.
