Agr. hydr. DSC/sterownik/Mocowanie for BMW 7 Series E65 745i (2003)

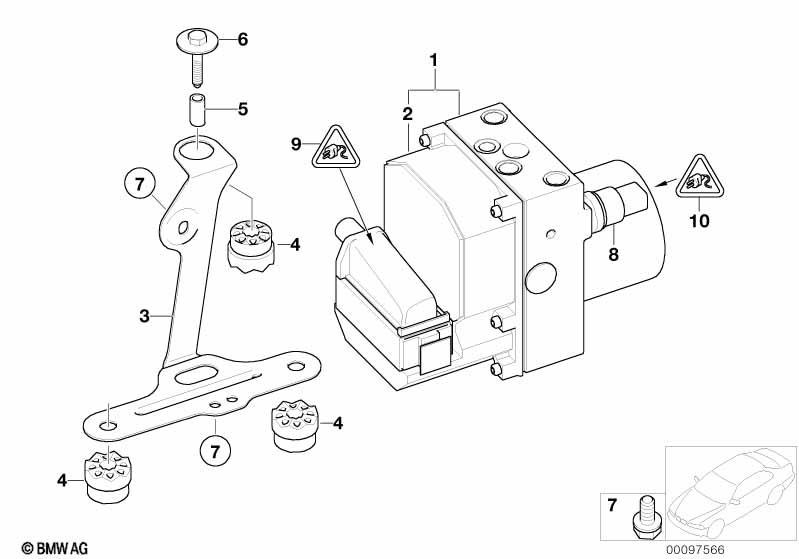

This Agr. hydr. DSC/sterownik/Mocowanie technical drawing provides a detailed breakdown of the assembly for the 7 Series E65 745i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Agregat hydrauliczny DSC | 1 | 34516855553 | Shop at ECS Tuning | ||||||
| 02 | Zestaw naprawczy sterownika DSC | 1 | 34522284921 | Shop at ECS Tuning | ||||||
| 03 | Wspornik agregatu hydraulicznego | 1 | 34516754348 | $9.65 | Shop at ECS Tuning | |||||
| 04 | Łożysko gumowe | 3 | 34511162818 | $2.57 | Shop at ECS Tuning | |||||
| 05 | Tuleja dystansowa | ZNS3 | 1 | 07146977328 | $1.21 | Shop at ECS Tuning | ||||
| 07 | Śruba z podkładką | M6X14-U1-8.8 | 2 | 07119905525 | $0.47 | Shop at ECS Tuning | ||||
| 08 | Czujnik ciśnienia | 1 | 34511165467 | $139.16 | Shop at ECS Tuning | |||||
| 09 | Obudowa gniazda | 1 | 61138373306 | $7.45 | Shop at ECS Tuning | |||||
| tylko w połączeniu z | ||||||||||
| -- | Styk tulejowy MQS ELA z kablem | 0,35-0,5 MM² AG | X | 61130056961 | Shop at ECS Tuning | |||||
| -- | Styk gniazda ELO- Power 2,8x 0,63 | 1,0- 2,5 MM² SN | X | 61138364838 | $0.62 | Shop at ECS Tuning | ||||
| -- | Styk gniazda ELO- Power 5,2 x 0,63 | 2,5- 4,0 MM² | X | 61138364848 | $0.62 | Shop at ECS Tuning | ||||
| -- | Uszczelnienie przewodu pojedynczego | 1,5-2,5MM ² | X | 61138372626 | $0.47 | Shop at ECS Tuning | ||||
| -- | Uszczelnienie przewodu pojedynczego | 2,5- 4,0 MM² | X | 61138372638 | $0.50 | Shop at ECS Tuning | ||||
| -- | Tulejka zaślepiająca | X | 61138373261 | $0.62 | Shop at ECS Tuning | |||||
| -- | Pokrywka | 1 | 61138373308 | $1.33 | Shop at ECS Tuning | |||||
| 10 | Uniwers. obudowa gniazda niekod. | 3 POL. | 1 | 07/2008 | 61138365348 | $3.40 | Shop at ECS Tuning | |||
| tylko w połączeniu z | ||||||||||
| -- | Styk tulejowy MQS ELA z kablem | 0,5-0,75 MM² AG | 3 | 07/2008 | 61130056384 | Shop at ECS Tuning | ||||
| 10 | Zest. napr. obudowy gniazda | 3 POL. | 1 | 61132359998 | Shop at ECS Tuning | |||||
| tylko w połączeniu z | ||||||||||
| -- | Styk tulejowy MQS ELA z kablem | 0,5-0,75 MM² AG | 3 | 61130056384 | Shop at ECS Tuning | |||||
