Pompa doład./Czujniki/Elementy dod. DSC for BMW 7 Series E65 745i (2003)

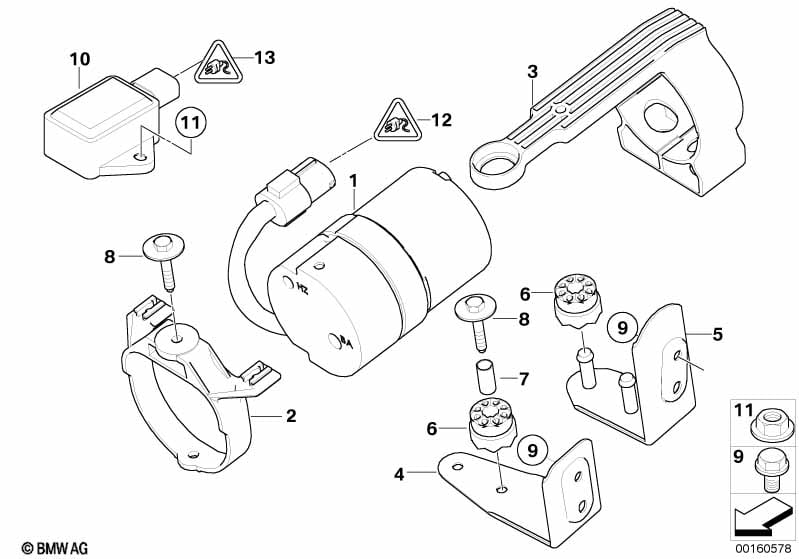

This Pompa doład./Czujniki/Elementy dod. DSC technical drawing provides a detailed breakdown of the assembly for the 7 Series E65 745i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Pompa doładowująca DSC | 1 | 34516781435 | $608.42 | Shop at ECS Tuning | |||||
| 02 | Wspornik pompy doładowującej | 1 | 34511165784 | $3.60 | Shop at ECS Tuning | |||||
| 03 | Element nośny | 1 | 34511165168 | $7.03 | Shop at ECS Tuning | |||||
| 04 | Uchwyt przedni pompy doładowującej | 1 | 34516756193 | $4.15 | Shop at ECS Tuning | |||||
| 05 | Uchwyt tylny pompy doładowującej | 1 | 34516756195 | $8.37 | Shop at ECS Tuning | |||||
| 06 | Łożysko gumowe | 3 | 34511162818 | $2.57 | Shop at ECS Tuning | |||||
| 07 | Tuleja dystansowa | ZNS3 | 1 | 07146977328 | $1.21 | Shop at ECS Tuning | ||||
| 08 | Śruba z podkładką | M6X35 ZNS3 | 1 | 07146971298 | $0.82 | Shop at ECS Tuning | ||||
| 09 | Śruba z podkładką | M6X14-U1-8.8 | 4 | 07119905525 | $0.47 | Shop at ECS Tuning | ||||
| 10 | Czujnik szybkości obrotów | 1 | 34526777435 | $556.54 | Shop at ECS Tuning | |||||
| 11 | Nakrętka z podkładką | AM6-8-ZNNIV SI | 2 | 07129904553 | $0.64 | Shop at ECS Tuning | ||||
| 12 | Uniwers. obudowa gniazda niekod. | 2 POL. | 1 | 61138352390 | $19.65 | Shop at ECS Tuning | ||||
| tylko w połączeniu z | ||||||||||
| -- | Okrągła tul. wtykowa 2.5 ELA z kablem | 0,75-1,0 MM² | 2 | 61130007569 | $2.27 | Shop at ECS Tuning | ||||
| 13 | Uniwers. obudowa gniazda niekod. | 4 POL. | 1 | 61138365356 | $3.10 | Shop at ECS Tuning | ||||
| tylko w połączeniu z | ||||||||||
| -- | Styk tulejowy MQS ELA z kablem | 0,35-0,5 MM² AG | 1 | 61130056961 | Shop at ECS Tuning | |||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E65 745i Pompa doład./Czujniki/Elementy dod. DSC?
- This technical diagram illustrates the Pompa doład./Czujniki/Elementy dod. DSC within the Hamulce group for the 7 Series E65 745i produced during 2003. It provides a detailed exploded view of the components, identifying key parts such as the Pompa doładowująca DSC (Part #34516781435).
- Which models use the hardware listed in this Pompa doład./Czujniki/Elementy dod. DSC?
- The hardware and components featured in the Pompa doład./Czujniki/Elementy dod. DSC are specific to the 7 Series E65 745i produced during 2003. These technical specifications ensure that parts like the Pompa doładowująca DSC (34516781435) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Pompa doład./Czujniki/Elementy dod. DSC assembly?
- Each item in the Pompa doład./Czujniki/Elementy dod. DSC corresponds to the numbered list below the illustration. For the 7 Series E65 745i, you can identify the Pompa doładowująca DSC by locating its position on the schematic, which then links to the official BMW part number 34516781435 for the Hamulce section.
