Główny cyl. hamulc./Zbiornik wyrówn. for BMW 7 Series E65 745i (2003)

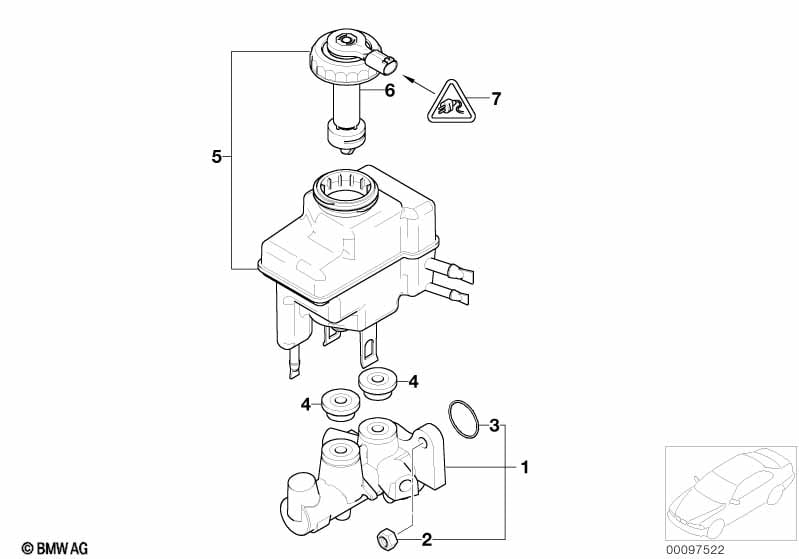

This Główny cyl. hamulc./Zbiornik wyrówn. technical drawing provides a detailed breakdown of the assembly for the 7 Series E65 745i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Pompa hamulcowa | 1 | 34336785926 | $481.15 | Shop at ECS Tuning | |||||
| 02 | Nakrętka samozabezpieczająca | M8-8-ZNNI SI | 2 | 07129906196 | $1.60 | Shop at ECS Tuning | ||||
| 03 | O-ring pompy hamulcowej | 1 | 34311165092 | $3.15 | Shop at ECS Tuning | |||||
| 04 | Zaślepka | 2 | 34311163464 | $6.95 | Shop at ECS Tuning | |||||
| 05 | Zbiornik płynu ham. z czujnikiem | 1 | 34326758848 | $66.85 | Shop at ECS Tuning | |||||
| 06 | Korek z czujnikiem ostrz. | 1 | 34326756226 | $30.33 | Shop at ECS Tuning | |||||
| 07 | Uniwers. obudowa gniazda niekod. | 2 POL. | 1 | 07/2008 | 61138795954 | Shop at ECS Tuning | ||||
| tylko w połączeniu z | ||||||||||
| -- | Styk tulejowy MQS ELA z kablem | 0,5-0,75 MM² AG | 1 | 07/2008 | 61130056384 | Shop at ECS Tuning | ||||
| -- | Styk tulejowy MQS ELA z kablem | 0,35-0,5 MM² AG | 1 | 07/2008 | 61130056961 | Shop at ECS Tuning | ||||
| 07 | Zest. napr. obudowy gniazda | 2 POL. | 1 | 61132359999 | Shop at ECS Tuning | |||||
| tylko w połączeniu z | ||||||||||
| -- | Styk tulejowy MQS ELA z kablem | 0,5-0,75 MM² AG | 1 | 61130056384 | Shop at ECS Tuning | |||||
| -- | Styk tulejowy MQS ELA z kablem | 0,35-0,5 MM² AG | 1 | 61130056961 | Shop at ECS Tuning | |||||
