Wspomaganie siły hamowania, podciśn. for BMW 7 Series E65 745i (2003)

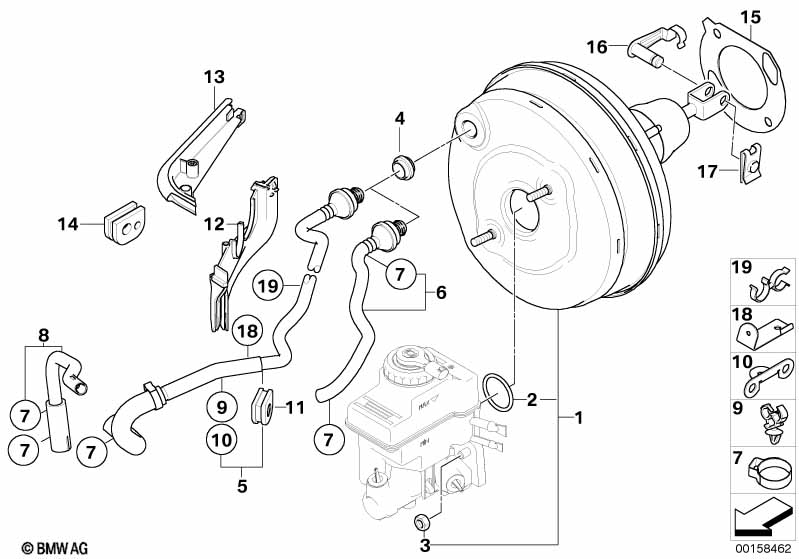

This Wspomaganie siły hamowania, podciśn. technical drawing provides a detailed breakdown of the assembly for the 7 Series E65 745i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Przewód podciśnieniowy patrz grupa główna 11 |
|||||||||
| 01 | Serwomechanizm ukł. hamulcowego | 1 | 34326779736 | $588.00 | Shop at ECS Tuning | |||||
| tylko w połączeniu z | ||||||||||
| -- | Uszczelka serwomechanizmu | 1 | 34336753979 | $3.42 | Shop at ECS Tuning | |||||
| -- | Nakrętka samozabezp. z kołnierzem | M8-10 ZNS3 | 2 | 07119905374 | Shop at ECS Tuning | |||||
| 02 | O-ring pompy hamulcowej | 1 | 34311165092 | $3.15 | Shop at ECS Tuning | |||||
| 03 | Nakrętka samozabezpieczająca | M8-8-ZNNI SI | 2 | 07129906196 | $1.60 | Shop at ECS Tuning | ||||
| 04 | Uszczelka | 1 | 34331161985 | $4.62 | Shop at ECS Tuning | |||||
| 05 | Przewód podciśnieniowy | 1 | 11667610751 | Shop at ECS Tuning | ||||||
| 07 | Opaska na węże | 21,3MM | 1 | 11151726339 | $1.02 | Shop at ECS Tuning | ||||
| 09 | Uchwyt przewodów, podwójny | 1 | 61138380213 | $0.35 | Shop at ECS Tuning | |||||
| 11 | Końcówka gumowa | 1 | 34336751614 | $2.37 | Shop at ECS Tuning | |||||
| 12 | Uszczelnienie ścianki dział., d. część | 1 | 34306756579 | $7.60 | Shop at ECS Tuning | |||||
| 13 | Ścianka działowa z uszcz., górna część | 1 | 34306756581 | $7.43 | Shop at ECS Tuning | |||||
| 14 | Końcówka | 1 | 34306753691 | $3.27 | Zakończono | Shop at ECS Tuning | ||||
| 15 | Uszczelka serwomechanizmu | 1 | 34336753979 | $3.42 | Shop at ECS Tuning | |||||
| 16 | Sworzeń zabezpieczający | D=10X29,5/PBX | 1 | 35216753830 | $2.68 | Shop at ECS Tuning | ||||
| 17 | Bezpiecznik | B10-ZNS3 | 1 | 07129904567 | $0.40 | Shop at ECS Tuning | ||||
Uwagi
- Zakończono = część wycofana z produkcji.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E65 745i Wspomaganie siły hamowania, podciśn.?
- This technical diagram illustrates the Wspomaganie siły hamowania, podciśn. within the Hamulce group for the 7 Series E65 745i produced during 2003. It provides a detailed exploded view of the components, identifying key parts such as the Serwomechanizm ukł. hamulcowego (Part #34326779736).
- Which models use the hardware listed in this Wspomaganie siły hamowania, podciśn.?
- The hardware and components featured in the Wspomaganie siły hamowania, podciśn. are specific to the 7 Series E65 745i produced during 2003. These technical specifications ensure that parts like the Serwomechanizm ukł. hamulcowego (34326779736) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Wspomaganie siły hamowania, podciśn. assembly?
- Each item in the Wspomaganie siły hamowania, podciśn. corresponds to the numbered list below the illustration. For the 7 Series E65 745i, you can identify the Serwomechanizm ukł. hamulcowego by locating its position on the schematic, which then links to the official BMW part number 34326779736 for the Hamulce section.
