Hamulec postojowy/Jednostka nastawcza for BMW 7 Series E65 745i (2003)

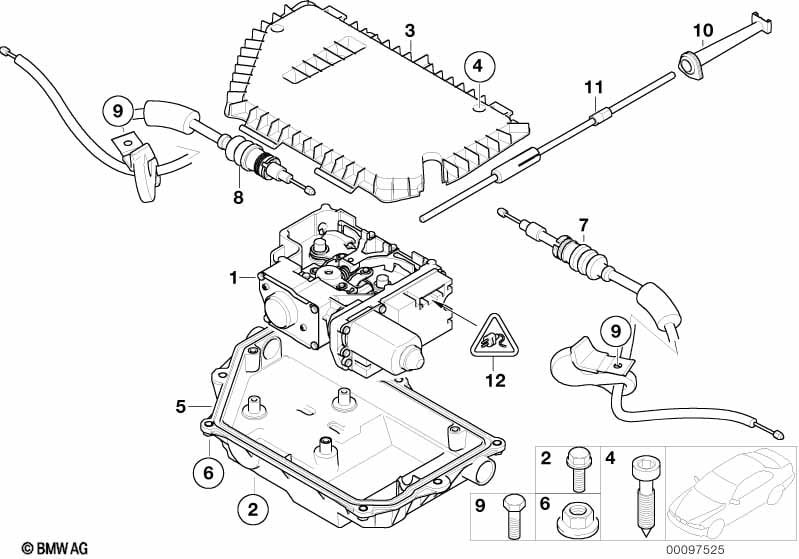

This Hamulec postojowy/Jednostka nastawcza technical drawing provides a detailed breakdown of the assembly for the 7 Series E65 745i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Siłownik ze sterownikiem | 1 | 34436862906 | Shop at ECS Tuning | ||||||
| 02 | Śruba z podkładką | M6X12-U2-8.8 | 3 | 07119904459 | $0.65 | Shop at ECS Tuning | ||||
| 03 | Pokrywa wanienki montażowej | 1 | 34436783646 | $21.11 | Shop at ECS Tuning | |||||
| 04 | Śruba imbusowa | M6X24 | 2 | 34436783644 | $7.54 | Shop at ECS Tuning | ||||
| 05 | Wanienka montażowa | 1 | 34401165908 | $28.39 | Shop at ECS Tuning | |||||
| 06 | Nakrętka z podkładką | M6 Z1-ZNNIV SI | 7 | 07146778500 | $0.47 | Shop at ECS Tuning | ||||
| 07 | Linka hamulca parkingowego, lewa | 1 | 12/2003 | 34436780016 | $106.20 | Shop at ECS Tuning | ||||
| 08 | Linka hamulca parkingowego, prawa | 1 | 12/2003 | 34436780017 | $106.20 | Shop at ECS Tuning | ||||
| 09 | Śruba z podkładką | M6X16-U2-ZNS3 | 2 | 07119902913 | Shop at ECS Tuning | |||||
| 10 | Rura prowadząca sterowania awaryjnego | 1 | 34406751485 | $2.70 | Zakończono | Shop at ECS Tuning | ||||
| 11 | Sterowanie awaryjne dla siłownika | 1 | 34406750218 | $8.95 | Shop at ECS Tuning | |||||
| 12 | Pokrywka | 13 POL. | 1 | 61138369668 | $1.12 | Shop at ECS Tuning | ||||
| tylko w połączeniu z | ||||||||||
| -- | Styk tulejowy MQS z kablem | 0,2- 0,5 QMM | X | 61130005197 | $1.65 | Shop at ECS Tuning | ||||
| -- | Styk tulejowy MQS z kablem | 0,5-0,75 MM² AG | X | 61130056960 | Shop at ECS Tuning | |||||
| -- | Styk gniazda ELO- Power 5,2 x 0,63 | 1,5-2,5 MM² SN | X | 61138364842 | $0.50 | Shop at ECS Tuning | ||||
| -- | Obudowa gniazda | 13 POL. | 1 | 61138369672 | $0.92 | Shop at ECS Tuning | ||||
| -- | Styk gniazda ELO- Power 2,8x 0,63 | 0,35-0,5 MM² SN | X | 61138377162 | $0.35 | Shop at ECS Tuning | ||||
Uwagi
- Zakończono = część wycofana z produkcji.
