Hamulec postojowy/Szczęka hamulcowa for BMW 7 Series E65 745i (2003)

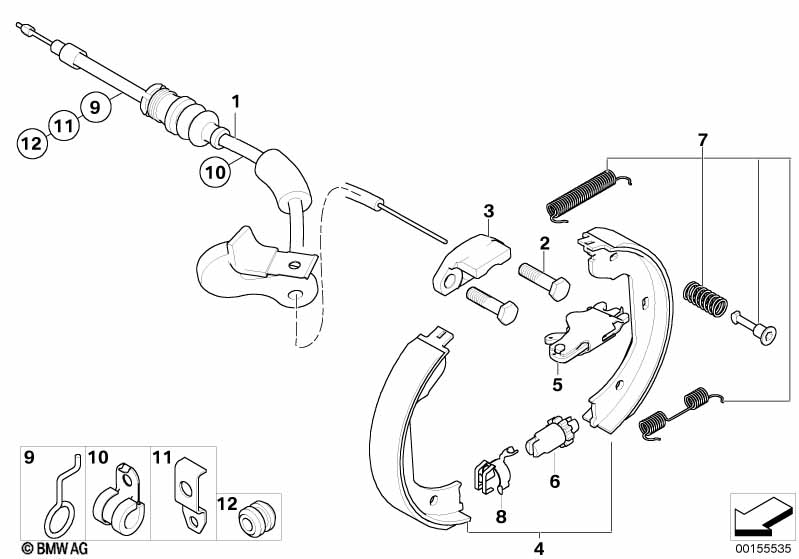

This Hamulec postojowy/Szczęka hamulcowa technical drawing provides a detailed breakdown of the assembly for the 7 Series E65 745i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Przy wymianie szczęk hamulcowych bezwzględnie wymagane są następujące części: Zestaw naprawczy sprężyn Zamek rozporowy Śruba nastawcza |
|||||||||
| 01 | Linka hamulca parkingowego, lewa | 1 | 12/2003 | 34436780016 | $106.20 | Shop at ECS Tuning | ||||
| 01 | Linka hamulca parkingowego, prawa | 1 | 12/2003 | 34436780017 | $106.20 | Shop at ECS Tuning | ||||
| 02 | Śruba sześciokątna | M10X38 10.9 | 4 | 34416772118 | $1.25 | Shop at ECS Tuning | ||||
| 03 | Wspornik | 2 | 34416759700 | $17.07 | Shop at ECS Tuning | |||||
| 04 | Zestaw montaż. szczęk hamulc. | 1 | 34416761293 | $101.29 | Shop at ECS Tuning | |||||
| 05 | Expanding lock | 2 | 34416851439 | Shop at ECS Tuning | ||||||
| 06 | Śruba nastawcza | 2 | 34416851437 | Shop at ECS Tuning | ||||||
| 07 | Zestaw naprawczy sprężyn | 1 | 34410038346 | $14.83 | Shop at ECS Tuning | |||||
