Agr. hydr. ABS/sterownik/Mocowanie for BMW MINI R56 One (2008)

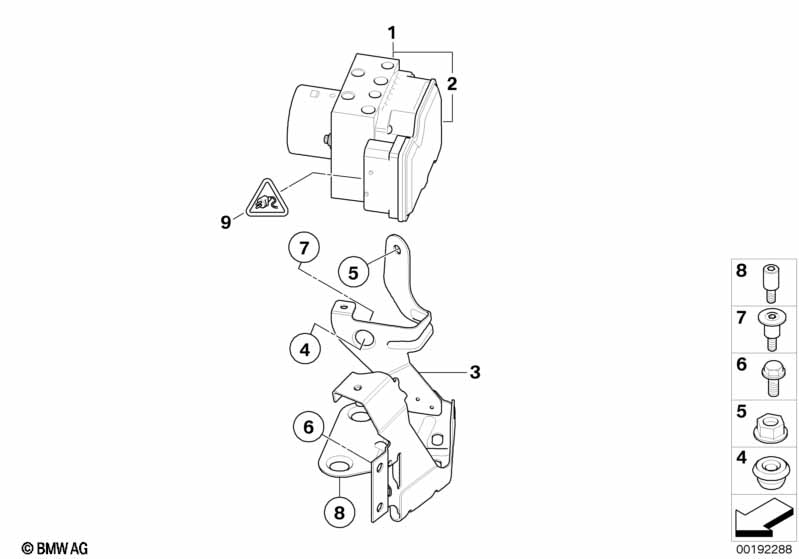

This Agr. hydr. ABS/sterownik/Mocowanie technical drawing provides a detailed breakdown of the assembly for the MINI R56 One. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2008.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Dla samochodów z Dynamiczny ukł. przeciwpoślizgowy i Automat. ukł. przeciwpoślizg. (ASC+T) |
S210A=Nie S214A=Nie |
||||||||
| 01 | Agregat hydrauliczny ABS | 1 | 03/2009 | 34506786224 | $1732.13 | Shop at ECS Tuning | ||||
| 02 | Zestaw naprawczy sterownika ABS | 1 | 09/2008 | 34526787634 | Shop at ECS Tuning | |||||
| 03 | Uchwyt agregatu hydraulicznego | 1 | 09/2008 | 34306773025 | $35.68 | Shop at ECS Tuning | ||||
| 04 | Łożysko gumowe | 3 | 09/2008 | 34306773030 | $0.91 | Shop at ECS Tuning | ||||
| 05 | Nakrętka sześciokątna | M8-ZNS3 | 1 | 09/2008 | 07119904024 | $0.20 | Shop at ECS Tuning | |||
| 06 | Śruba sześciokątna | M8X20-8.8ZNS3 | 2 | 09/2008 | 07119904401 | $0.38 | Shop at ECS Tuning | |||
| 07 | Śruba z kołnierzem | 1 | 09/2008 | 07146773028 | $0.82 | Zakończono | Shop at ECS Tuning | |||
| 08 | Śruba dwustronna | 2 | 09/2008 | 34506778167 | $1.71 | Shop at ECS Tuning | ||||
| 09 | Obudowa gniazda | 38 POL. | 1 | 09/2008 | 61136977922 | Shop at ECS Tuning | ||||
| tylko w połączeniu z | ||||||||||
| -- | Styk gniazda MQS ELA | 0,75-1,5 MM² | 1 | 09/2008 | 61136901728 | $0.35 | Shop at ECS Tuning | |||
| -- | Styk gniazda ELO- Power 2,8x 0,63 | 2,5-4,0 MM | X | 09/2008 | 61136913612 | $0.50 | Shop at ECS Tuning | |||
| -- | Styk gniazda MQS ELA | 0,35-0,5MM²/AU | X | 09/2008 | 61137835213 | $5.65 | Zakończono | Shop at ECS Tuning | ||
| -- | Styk gniazda ELO- Power 2,8x 0,63 | 1,0- 2,5 MM² SN | X | 09/2008 | 61138364838 | $0.62 | Shop at ECS Tuning | |||
| -- | Styk gniazda ELO- Power 5,2 x 0,63 | 1,0- 2,5 MM² | X | 09/2008 | 61138364846 | $0.50 | Shop at ECS Tuning | |||
| -- | Styk gniazda ELO- Power 5,2 x 0,63 | 2,5- 4,0 MM² | X | 09/2008 | 61138364848 | $0.62 | Shop at ECS Tuning | |||
Uwagi
- Zakończono = część wycofana z produkcji.
