Dźwignia nożna for BMW 7 Series E65 745i (2003)

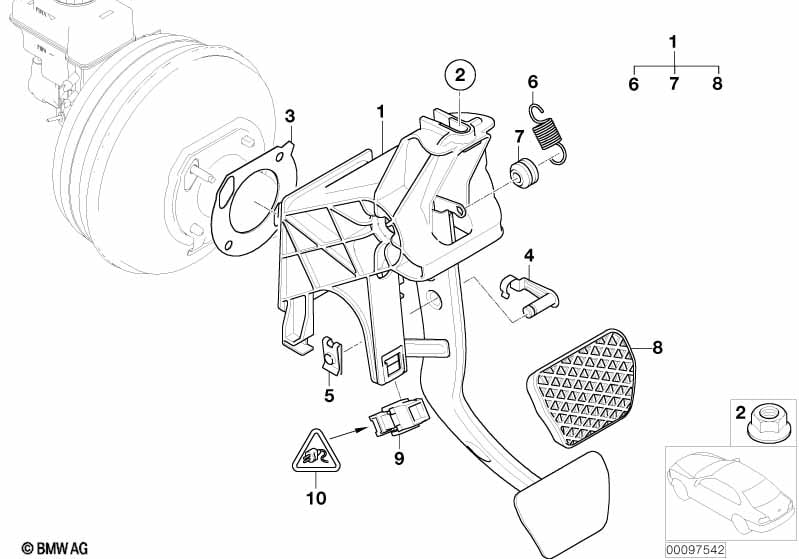

This Dźwignia nożna technical drawing provides a detailed breakdown of the assembly for the 7 Series E65 745i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Mechanizm dźwigni nożnej kompletny | 1 | 35006753824 | $117.35 | Zakończono | Shop at ECS Tuning | ||||
| niedozwolona dalsza ingerencja | ||||||||||
| 02 | Nakrętka samozabezp. z kołnierzem | M8-10 ZNS3 | 3 | 07119905374 | Shop at ECS Tuning | |||||
| 03 | Uszczelka serwomechanizmu | 1 | 34336753979 | $3.42 | Shop at ECS Tuning | |||||
| 04 | Sworzeń zabezpieczający | D=10X29,5/PBX | 1 | 35216753830 | $2.68 | Shop at ECS Tuning | ||||
| 05 | Bezpiecznik | B10-ZNS3 | 1 | 07/2007 | 07129904567 | $0.40 | Shop at ECS Tuning | |||
| 05 | Bezpiecznik | B10-ZNS3 | 1 | 07129904567 | $0.40 | Shop at ECS Tuning | ||||
| 06 | Sprężyna powrotna dźwigni hamulca | 1 | 35216753829 | $1.90 | Shop at ECS Tuning | |||||
| 07 | Końcówka | D=7,5MM | 1 | 35411113728 | $0.57 | Shop at ECS Tuning | ||||
| 08 | Nakładka pedału | B=100MM | 1 | 35211160421 | $4.47 | Shop at ECS Tuning | ||||
| 09 | Włącznik świateł stop | 1 | 61316967601 | $32.07 | Shop at ECS Tuning | |||||
| 10 | Uniwers. obudowa gniazda niekod. | 4 POL. | 1 | 07/2008 | 61138380696 | $0.93 | Shop at ECS Tuning | |||
| tylko w połączeniu z | ||||||||||
| -- | Styk tulejowy MQS z kablem | 0,2- 0,5 QMM | X | 07/2008 | 61130005197 | $1.65 | Shop at ECS Tuning | |||
| -- | Styk tulejowy MQS z kablem | 0,5-0,75 MM² AG | X | 07/2008 | 61130056960 | Shop at ECS Tuning | ||||
| 10 | Zest. napr. obudowy gniazda | 4 POL. | 1 | 61132359994 | Shop at ECS Tuning | |||||
| tylko w połączeniu z | ||||||||||
| -- | Styk tulejowy MQS z kablem | 0,2- 0,5 QMM | X | 61130005197 | $1.65 | Shop at ECS Tuning | ||||
| -- | Styk tulejowy MQS z kablem | 0,5-0,75 MM² AG | X | 61130056960 | Shop at ECS Tuning | |||||
Uwagi
- Zakończono = część wycofana z produkcji.
