Obręcz bezszprychowa stalowa Styl.1 for BMW 7 Series E23 735i (1985)

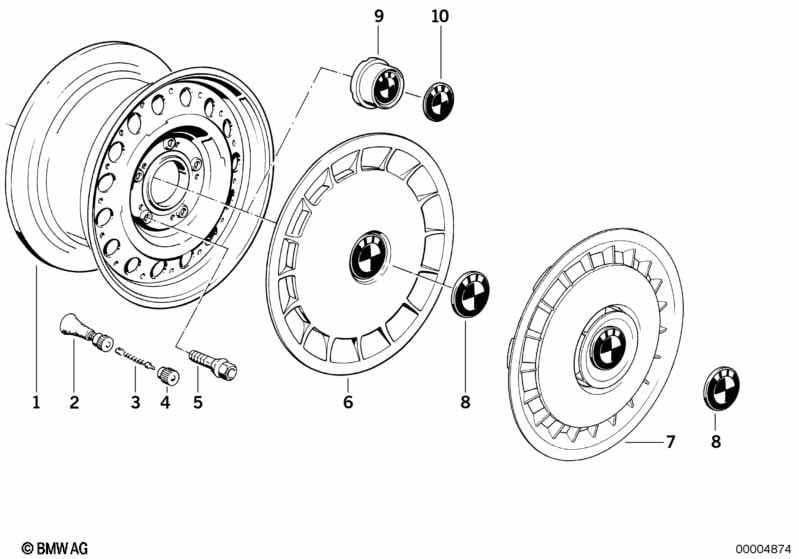

This Obręcz bezszprychowa stalowa Styl.1 technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 735i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1985.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Obręcz koła stalowa TRX | 165TR390 ET:22 | 4 | 36111178934 | $72.50 | Zakończono, ABE 9780826, ABE 9781667, ABE 9781842 | Shop at ECS Tuning | |||
| 02 | Zawór gumowy | L=42,5MM | 4 | 36121116326 | $3.30 | Shop at ECS Tuning | ||||
| 03 | Zawór | 4 | 36141095389 | $1.38 | Shop at ECS Tuning | |||||
| 04 | Zakrętka zaworu | 4 | 36121120779 | $0.60 | Shop at ECS Tuning | |||||
| 05 | Śruba koła czarna | M12X1,5 | X | 36136781150 | $3.21 | Shop at ECS Tuning | ||||
| 09 | Kołpak | D=104MM | 4 | 36131179141 | $17.25 | Zakończono | Shop at ECS Tuning | |||
| 10 | Emblemat BMW, wytłacz., z folią samop. | D=64,5MM | 4 | 36131181080 | $6.90 | Shop at ECS Tuning |
Uwagi
- Zakończono = część wycofana z produkcji.
- ABE = Allgemeine Betriebserlaubnis (Ogólne dopuszczenie do ruchu)
