BMW LA wheel, star spoke 90 for BMW 7 Series E65 745i (2003)

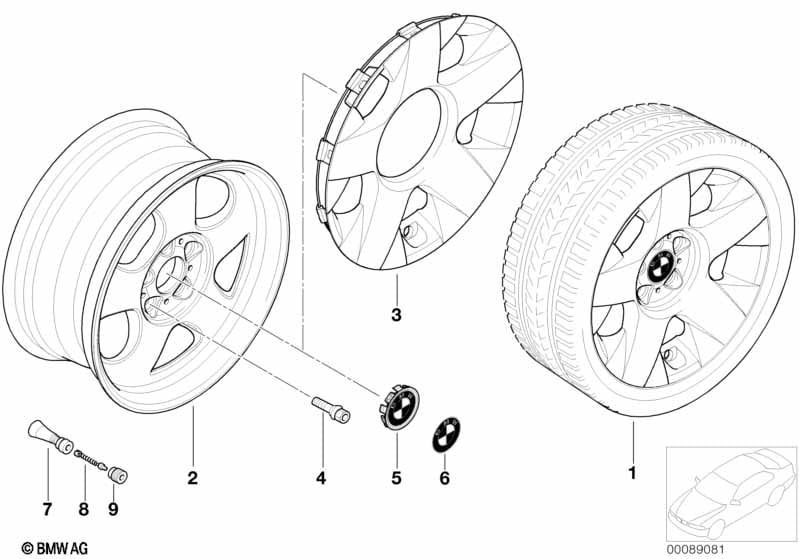

This BMW LA wheel, star spoke 90 technical drawing provides a detailed breakdown of the assembly for the 7 Series E65 745i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Obręcz koła aluminiowa, kuta | 8JX17 ET:24 | 4 | 36116753236 | $514.00 | Zakończono | Shop at ECS Tuning | |||
| 03 | Osłona przezroczysta | 4 | 36136753444 | $50.05 | Zakończono | Shop at ECS Tuning | ||||
| 04 | Śruba koła czarna | M14X1,5 | 20 | 36136781152 | $2.21 | Shop at ECS Tuning | ||||
| 05 | Osłona piasty z chromowaną krawędzią | BMW | 4 | 36136783536 | $9.95 | Shop at ECS Tuning | ||||
| 06 | Plakietka BMW wytłacz./lakierowana | 4 | 36136767547 | $5.02 | Zakończono | Shop at ECS Tuning | ||||
| 07 | Zawór gumowy | L=42,5MM | 4 | 36121116326 | $3.30 | Shop at ECS Tuning | ||||
| Dla samochodów z Kontrola ciśnienia w oponach (RDC) |
S265A=Tak |
|||||||||
| 07 | Zawór wkręcany RDC | 4 | 36146792829 | $13.90 | Shop at ECS Tuning | |||||
| 08 | Zawór | 4 | 36141095389 | $1.38 | Shop at ECS Tuning | |||||
| 09 | Zakrętka zaworu | 4 | 36121120779 | $0.60 | Shop at ECS Tuning | |||||
| Dla samochodów z Kontrola ciśnienia w oponach (RDC) |
S265A=Tak |
|||||||||
| 09 | Zakrętka zaworu RDC | 4 | 36111095436 | $0.35 | Shop at ECS Tuning | |||||
Uwagi
- Zakończono = część wycofana z produkcji.
