BMW light alloy wheel,spider spoke 92 for BMW 7 Series E65 745i (2003)

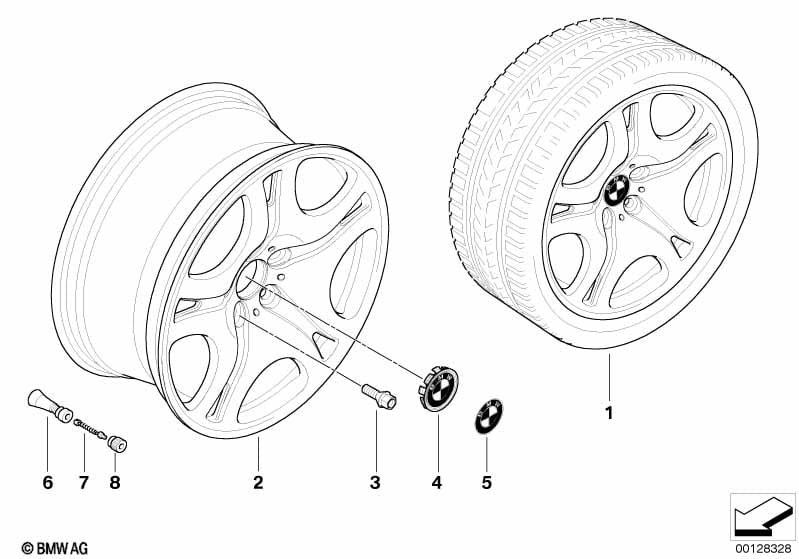

This BMW light alloy wheel,spider spoke 92 technical drawing provides a detailed breakdown of the assembly for the 7 Series E65 745i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Obręcz koła aluminiowa, polerowana | 9JX19 ET:24 | 2 | 36116753238 | $572.00 | +podst | Shop at ECS Tuning | |||
| 02 | Obręcz koła aluminiowa, polerowana | 10JX19 ET:24 | 2 | 36116754998 | $637.00 | Shop at ECS Tuning | ||||
| 03 | Śruba koła czarna | M14X1,5 | 20 | 36136781152 | $2.21 | Shop at ECS Tuning | ||||
| 04 | Osłona piasty z chromowaną krawędzią | BMW | 4 | 36136783536 | $9.95 | Shop at ECS Tuning | ||||
| 05 | Plakietka BMW wytłacz./lakierowana | 4 | 36136767547 | $5.02 | Zakończono | Shop at ECS Tuning | ||||
| 06 | Zawór gumowy | L=42,5MM | 4 | 36121116326 | $3.30 | Shop at ECS Tuning | ||||
| Dla samochodów z Kontrola ciśnienia w oponach (RDC) |
S265A=Tak |
|||||||||
| 06 | Zawór wkręcany RDC | 4 | 36146792829 | $13.90 | Shop at ECS Tuning | |||||
| 07 | Zawór | 4 | 36141095389 | $1.38 | Shop at ECS Tuning | |||||
| 08 | Zakrętka zaworu | 4 | 36121120779 | $0.60 | Shop at ECS Tuning | |||||
| Dla samochodów z Kontrola ciśnienia w oponach (RDC) |
S265A=Tak |
|||||||||
| 08 | Zakrętka zaworu RDC | 4 | 36111095436 | $0.35 | Shop at ECS Tuning | |||||
Uwagi
- +podst = plus opłata podstawowa (możliwość zwrócenia starej części).
- Zakończono = część wycofana z produkcji.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E65 745i BMW light alloy wheel,spider spoke 92?
- This technical diagram illustrates the BMW light alloy wheel,spider spoke 92 within the Koła group for the 7 Series E65 745i produced during 2003. It provides a detailed exploded view of the components, identifying key parts such as the Obręcz koła aluminiowa, polerowana (Part #36116753238).
- Which models use the hardware listed in this BMW light alloy wheel,spider spoke 92?
- The hardware and components featured in the BMW light alloy wheel,spider spoke 92 are specific to the 7 Series E65 745i produced during 2003. These technical specifications ensure that parts like the Obręcz koła aluminiowa, polerowana (36116753238) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the BMW light alloy wheel,spider spoke 92 assembly?
- Each item in the BMW light alloy wheel,spider spoke 92 corresponds to the numbered list below the illustration. For the 7 Series E65 745i, you can identify the Obręcz koła aluminiowa, polerowana by locating its position on the schematic, which then links to the official BMW part number 36116753238 for the Koła section.
