Zamek do śrub kół z adapterem for BMW 7 Series E65 745i (2003)

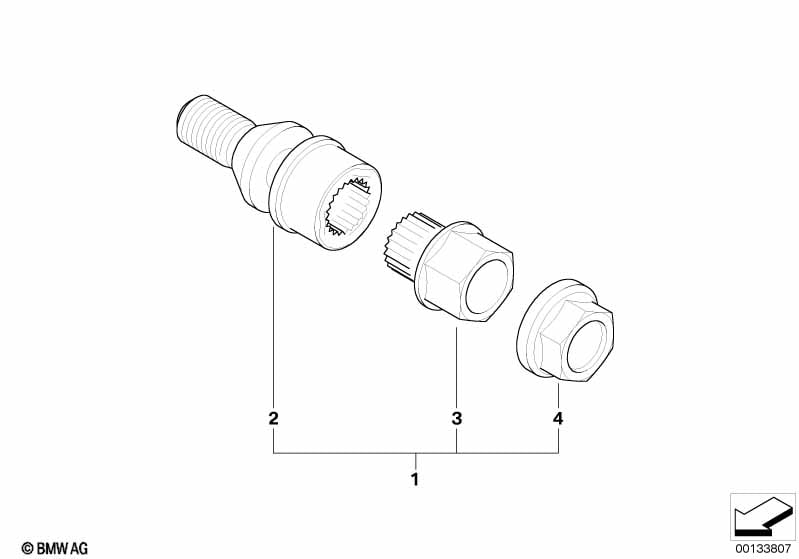

This Zamek do śrub kół z adapterem technical drawing provides a detailed breakdown of the assembly for the 7 Series E65 745i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Kpl. śrub zabezpieczających | M14X1,5 | 1 | 36136786426 | $26.75 | Shop at ECS Tuning | ||||
| 02 | Śruba koła z kodem | CODE 35 | 4 | 36136762007 | $11.75 | Zakończono | Shop at ECS Tuning | |||
| 02 | Śruba koła z kodem | CODE 36 | 4 | 36136762008 | $11.75 | Zakończono | Shop at ECS Tuning | |||
| 02 | Śruba koła z kodem | CODE 37 | 4 | 36136762009 | $10.04 | Zakończono | Shop at ECS Tuning | |||
| 02 | Śruba koła z kodem | CODE 38 | 4 | 36136762010 | $11.75 | Zakończono | Shop at ECS Tuning | |||
| 02 | Śruba koła z kodem | CODE 40 | 4 | 36136762011 | $11.75 | Zakończono | Shop at ECS Tuning | |||
| 03 | Adapter z kodem | CODE 37/SW17MM | 1 | 36136762342 | $6.70 | Shop at ECS Tuning | ||||
| 04 | Pokrywka | SW17MM | 4 | 36131180374 | $0.42 | Shop at ECS Tuning |
Uwagi
- Zakończono = część wycofana z produkcji.
