Obr. BMW, st. le. indiwid. spr. V 152 for BMW 7 Series E65 745i (2003)

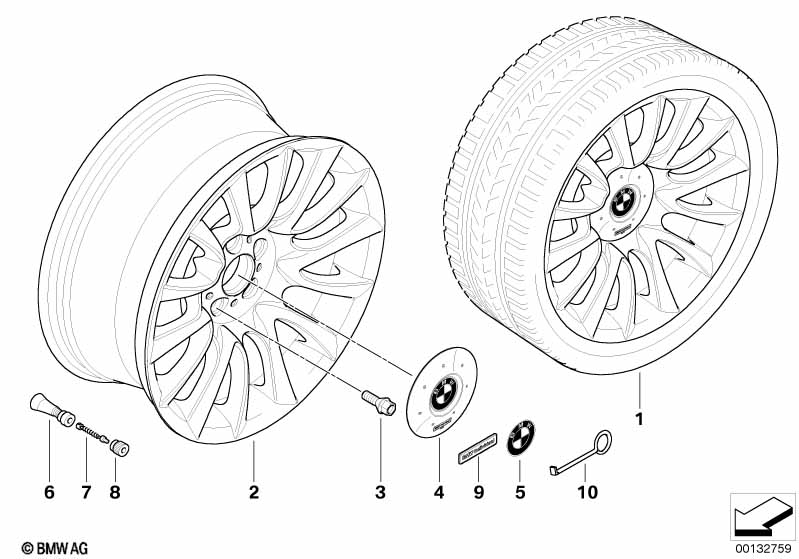

This Obr. BMW, st. le. indiwid. spr. V 152 technical drawing provides a detailed breakdown of the assembly for the 7 Series E65 745i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Obręcz koła aluminiowa, srebrna | 9JX20 ET:24 | 2 | 36117897250 | $578.00 | Shop at ECS Tuning | ||||
| 02 | Koło alu., kamacitgrau | 9JX20 ET:24 | 2 | 36117973249 | $607.00 | Zakończono, NoS | Shop at ECS Tuning | |||
| 02 | Obręcz koła aluminiowa, srebrna | 10JX20 ET:24 | 2 | 36117897251 | $638.00 | Shop at ECS Tuning | ||||
| 02 | Koło alu., kamacitgrau | 10JX20 ET:24 | 2 | 36117973251 | $670.00 | Zakończono, NoS | Shop at ECS Tuning | |||
| 03 | Śruba koła czarna | M14X1,5 | 20 | 36136781152 | $2.21 | Shop at ECS Tuning | ||||
| 04 | Osłona piasty, srebrna | D=173MM | 4 | 36137849415 | Shop at ECS Tuning | |||||
| 04 | Osłona piasty kamacit-gray | D=173MM | 4 | 36137849418 | Shop at ECS Tuning | |||||
| 05 | Plakietka BMW, wytłacz., z folią samop. | D=64,5MM | 4 | 36136767550 | $5.33 | Shop at ECS Tuning | ||||
| 06 | Zawór gumowy | L=48,5MM | 4 | 03/2006 | 36121178869 | $3.30 | Shop at ECS Tuning | |||
| Dla samochodów z Wersja krajowa Kanada |
L838A=Tak |
|||||||||
| 06 | Zawór gumowy | L=48,5MM | 4 | 36121178869 | $3.30 | Shop at ECS Tuning | ||||
| 07 | Zawór | 4 | 36141095389 | $1.38 | Shop at ECS Tuning | |||||
| 08 | Zakrętka zaworu | 4 | 03/2006 | 36121120779 | $0.60 | Shop at ECS Tuning | ||||
| Dla samochodów z Wersja krajowa Kanada |
L838A=Tak |
|||||||||
| 08 | Zakrętka zaworu | 4 | 36121120779 | $0.60 | Shop at ECS Tuning | |||||
| 09 | Emblemat BMW Individual | 4 | 36137897226 | $5.60 | Shop at ECS Tuning | |||||
| 10 | Ściągacz do kołpaków | 1 | 36132294421 | $9.86 | Shop at ECS Tuning | |||||
Uwagi
- Zakończono = część wycofana z produkcji.
- NoS = No Stock (Część niemagazynowana centralnie.)
