Obr. BMW, st. le. spr. gw. 175 for BMW 7 Series E65 745i (2003)

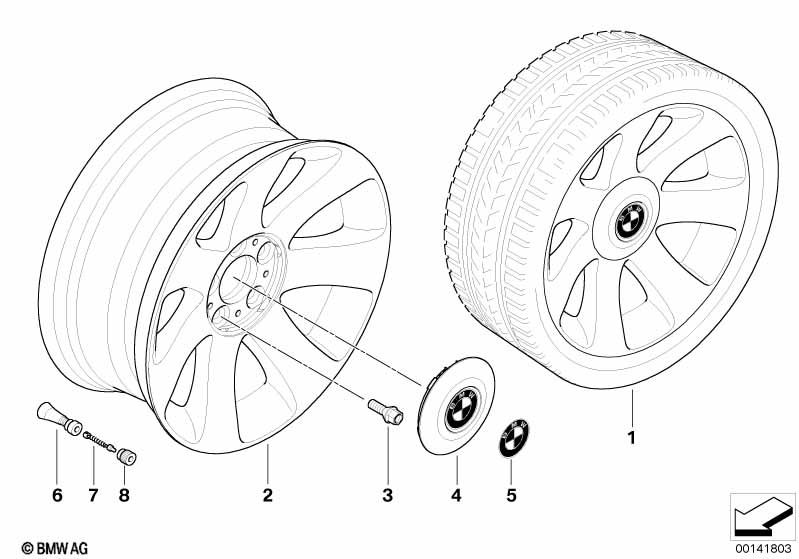

This Obr. BMW, st. le. spr. gw. 175 technical drawing provides a detailed breakdown of the assembly for the 7 Series E65 745i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| z EH2 Hump | ||||||||||
| 02 | Obręcz koła aluminiowa | 8JX18 ET:24 | 4 | 36116767828 | $379.95 | Shop at ECS Tuning | ||||
| 03 | Śruba koła czarna | M14X1,5 | 20 | 36136781152 | $2.21 | Shop at ECS Tuning | ||||
| 04 | Kołpak | D=163MM | 4 | 36136767829 | $19.50 | Shop at ECS Tuning | ||||
| 05 | Plakietka BMW, wytłacz., z folią samop. | D=70MM | 4 | 36136758569 | $5.92 | Shop at ECS Tuning | ||||
| 06 | Zawór gumowy | L=48,5MM | 4 | 36121178869 | $3.30 | Shop at ECS Tuning | ||||
| 07 | Zawór | 4 | 36141095389 | $1.38 | Shop at ECS Tuning | |||||
| 08 | Zakrętka zaworu | 4 | 36121120779 | $0.60 | Shop at ECS Tuning | |||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E65 745i Obr. BMW, st. le. spr. gw. 175?
- This technical diagram illustrates the Obr. BMW, st. le. spr. gw. 175 within the Koła group for the 7 Series E65 745i produced during 2003. It provides a detailed exploded view of the components, identifying key parts such as the Obręcz koła aluminiowa (Part #36116767828).
- Which models use the hardware listed in this Obr. BMW, st. le. spr. gw. 175?
- The hardware and components featured in the Obr. BMW, st. le. spr. gw. 175 are specific to the 7 Series E65 745i produced during 2003. These technical specifications ensure that parts like the Obręcz koła aluminiowa (36116767828) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Obr. BMW, st. le. spr. gw. 175 assembly?
- Each item in the Obr. BMW, st. le. spr. gw. 175 corresponds to the numbered list below the illustration. For the 7 Series E65 745i, you can identify the Obręcz koła aluminiowa by locating its position on the schematic, which then links to the official BMW part number 36116767828 for the Koła section.
