Obr. MINI st.le. Cross Spoke Compos. 90 for BMW MINI R50 Cooper (2004)

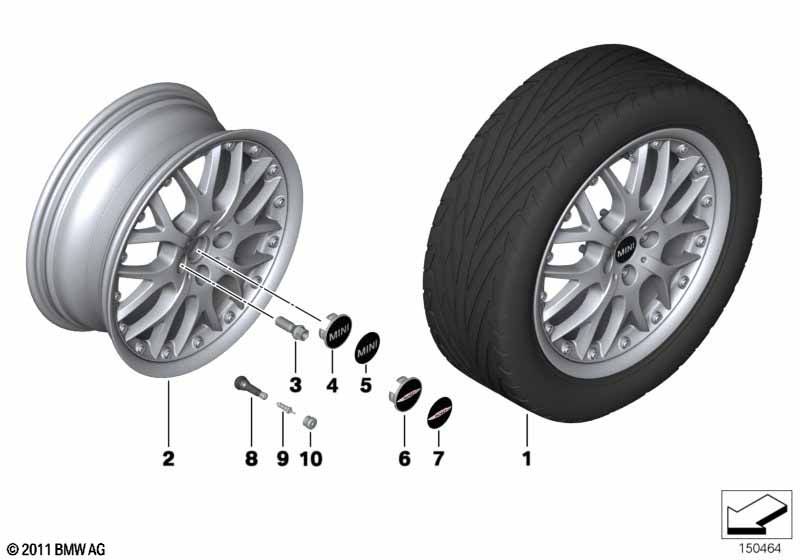

This Obr. MINI st.le. Cross Spoke Compos. 90 technical drawing provides a detailed breakdown of the assembly for the MINI R50 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2004.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Dla samochodów z 17" obr.st.le. Cross Spoke Compos. R90 |
SZV2A=Tak |
||||||||
| 02 | Obręcz bezszprychowa 2-dzielna srebrne | 7JX17 ET:48 | 4 | 07/2004 | 36116777968 | $473.60 | Zakończono | Shop at ECS Tuning | ||
| tylko w połączeniu z | ||||||||||
| -- | Kpl. elem. dod. do nadkola tylnego | 1 | 07/2004 | 51120141894 | $23.75 | Zakończono | Shop at ECS Tuning | |||
| 02 | Obręcz bezszprychowa 2-dzielna antracyt | 7JX17 ET:48 | 4 | 36116768580 | $391.42 | Zakończono | Shop at ECS Tuning | |||
| 02 | Obręcz bezszprychowa 2-dzielna antracyt | 7JX17 ET:48 | 4 | 07/2004 | 36116777969 | $531.11 | Shop at ECS Tuning | |||
| tylko w połączeniu z | ||||||||||
| -- | Kpl. elem. dod. do nadkola tylnego | 1 | 07/2004 | 51120141894 | $23.75 | Zakończono | Shop at ECS Tuning | |||
| 02 | Obręcz 2-częściowa czarna | 7JX17 ET:48 | 4 | 07/2004 | 36116780983 | $501.62 | Shop at ECS Tuning | |||
| tylko w połączeniu z | ||||||||||
| -- | Kpl. elem. dod. do nadkola tylnego | 1 | 07/2004 | 51120141894 | $23.75 | Zakończono | Shop at ECS Tuning | |||
| 03 | Śruba koła czarna | M12X1,5 | 16 | 07/2006 | 36136781150 | $3.21 | Shop at ECS Tuning | |||
| 04 | Pokrywa piasty MINI | D=53.9MM | 4 | 36131171069 | $4.87 | Shop at ECS Tuning | ||||
| 05 | Plakietka MINI z folią samoprzylepną | 4 | 36136758687 | $3.58 | Shop at ECS Tuning | |||||
| 06 | Pokrywa piasty J.Cooper Works | D=53.9MM | 4 | 03/2008 | 36136778917 | $10.75 | Shop at ECS Tuning | |||
| 07 | Plakiet. z folią samoprz. J.Cooper Works | 4 | 03/2008 | 36136765999 | $3.66 | Zakończono | Shop at ECS Tuning | |||
| 08 | Zawór gumowy | L=48,5MM | 4 | 36121178869 | $3.30 | Shop at ECS Tuning | ||||
| 09 | Zawór | 4 | 36141095389 | $1.38 | Shop at ECS Tuning | |||||
| 10 | Zakrętka zaworu | 4 | 36121120779 | $0.60 | Shop at ECS Tuning | |||||
Uwagi
- Zakończono = część wycofana z produkcji.
