Obr. JCW st. le. Double-Spoke R105 for BMW MINI R50 Cooper (2004)

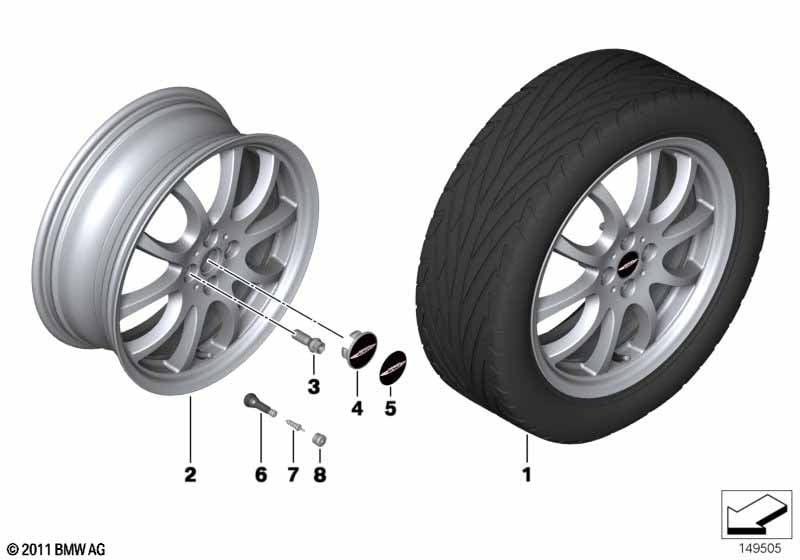

This Obr. JCW st. le. Double-Spoke R105 technical drawing provides a detailed breakdown of the assembly for the MINI R50 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2004.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Dla samochodów z 18" obr.st.le. Double Spoke R105 |
SZLTA=Tak |
||||||||
| 02 | Obr. bezsz. z met. lekk. tocz. na połysk | 7JX18 ET: 52 | 4 | 07/2004 | 36116777973 | $376.32 | Zakończono | Shop at ECS Tuning | ||
| tylko w połączeniu z | ||||||||||
| -- | Kpl. elem. dod. do nadkola tylnego | 1 | 07/2004 | 51120141894 | $23.75 | Zakończono | Shop at ECS Tuning | |||
| -- | Zest. dopos. - ogr. kąta skrętu | 1 | 07/2004 | 32110303293 | $27.95 | Shop at ECS Tuning | ||||
| 02 | Obręcz koła aluminiowa, czarna | 7JX18 ET:52 | 4 | 07/2004 | 36116778428 | $360.12 | Zakończono | Shop at ECS Tuning | ||
| tylko w połączeniu z | ||||||||||
| -- | Kpl. elem. dod. do nadkola tylnego | 1 | 07/2004 | 51120141894 | $23.75 | Zakończono | Shop at ECS Tuning | |||
| -- | Zest. dopos. - ogr. kąta skrętu | 1 | 07/2004 | 32110303293 | $27.95 | Shop at ECS Tuning | ||||
| 03 | Śruba koła czarna | M12X1,5 | 16 | 07/2006 | 36136781150 | $3.21 | Shop at ECS Tuning | |||
| 04 | Pokrywa piasty J.Cooper Works | D=53.9MM | 4 | 36136778917 | $10.75 | Shop at ECS Tuning | ||||
| 05 | Plakiet. z folią samoprz. J.Cooper Works | 4 | 03/2008 | 36136765999 | $3.66 | Zakończono | Shop at ECS Tuning | |||
| 05 | Plakiet. z folią samoprz. J.Cooper Works | 4 | 36136786764 | Shop at ECS Tuning | ||||||
| 06 | Zawór gumowy | L=48,5MM | 4 | 36121178869 | $3.30 | Shop at ECS Tuning | ||||
| 07 | Zawór | 4 | 36141095389 | $1.38 | Shop at ECS Tuning | |||||
| 08 | Zakrętka zaworu | 4 | 36121120779 | $0.60 | Shop at ECS Tuning | |||||
Uwagi
- Zakończono = część wycofana z produkcji.
