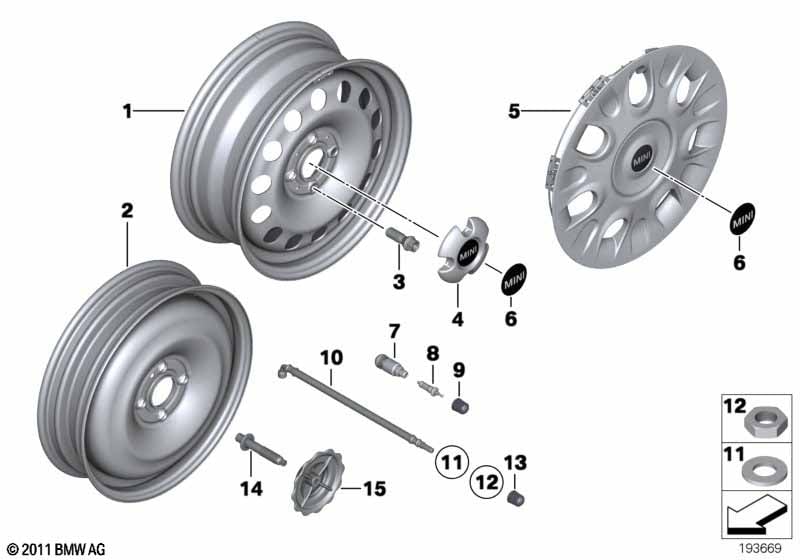

Obręcz bezszpr. MINI, stal, styl.12 for BMW MINI R56 One (2008)
This Obręcz bezszpr. MINI, stal, styl.12 technical drawing provides a detailed breakdown of the assembly for the MINI R56 One. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2008.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Dla samochodów z Hamulec sportowy JCW 16" i Sportowy układ hamulcowy |
SZX6A=Nie SZZDA=Nie |
|||||||||
| 01 | Obręcz koła stalowa, srebrna | 51/2JX15 ET:45 | 4 | 36116768497 | $57.44 | Shop at ECS Tuning | ||||
| nie pasuje do | ||||||||||
| 01 | Obręcz koła stalowa, czarna | 51/2JX15 ET:45 | 4 | 36111511414 | $57.44 | +podst | Shop at ECS Tuning | |||
| nie pasuje do | ||||||||||
| -- | Zest. dopos. - hamulec Sport | J. COOPER WORKS | X | 34110432802 | $1999.00 | Zakończono, +podst | Shop at ECS Tuning | |||
| 02 | Koło dojazdowe stalowe czarne | 31/2JX15 ET:35 | 1 | 36111509164 | $120.00 | +podst | Shop at ECS Tuning | |||
| 03 | Śruba koła czarna | M14X1,25 | 16 | 36136890324 | Shop at ECS Tuning | |||||
| 04 | Pokrywa piasty MINI | 15" | 4 | 36136862440 | Shop at ECS Tuning | |||||
| 05 | Kołpak koła | 15" | 4 | 36136785977 | $32.93 | Shop at ECS Tuning | ||||
| 06 | Plakietka MINI z folią samoprzylepną | 4 | 36136758687 | $3.58 | Shop at ECS Tuning | |||||
| 07 | Zawór gumowy | L=42,5MM | 4 | 36121116326 | $3.30 | Shop at ECS Tuning | ||||
| 08 | Zawór | 4 | 36141095389 | $1.38 | Shop at ECS Tuning | |||||
| 09 | Zakrętka zaworu | 4 | 36121120779 | $0.60 | Shop at ECS Tuning | |||||
| 10 | Zawór | 1 | 31106783425 | $24.30 | Shop at ECS Tuning | |||||
| 11 | Podkładka | 8,4X16X1,6-ZNNV | 2 | 07119907030 | Shop at ECS Tuning | |||||
| 12 | Nakrętka sześciokątna | 1 | 36136784454 | $3.04 | Shop at ECS Tuning | |||||
| 13 | Zakrętka zaworu | 1 | 51718229473 | $0.33 | Shop at ECS Tuning | |||||
Uwagi
- +podst = plus opłata podstawowa (możliwość zwrócenia starej części).
- Zakończono = część wycofana z produkcji.
