Obr. JCW st. le. Cross Spoke Chall. R112 for BMW MINI R50 Cooper (2004)

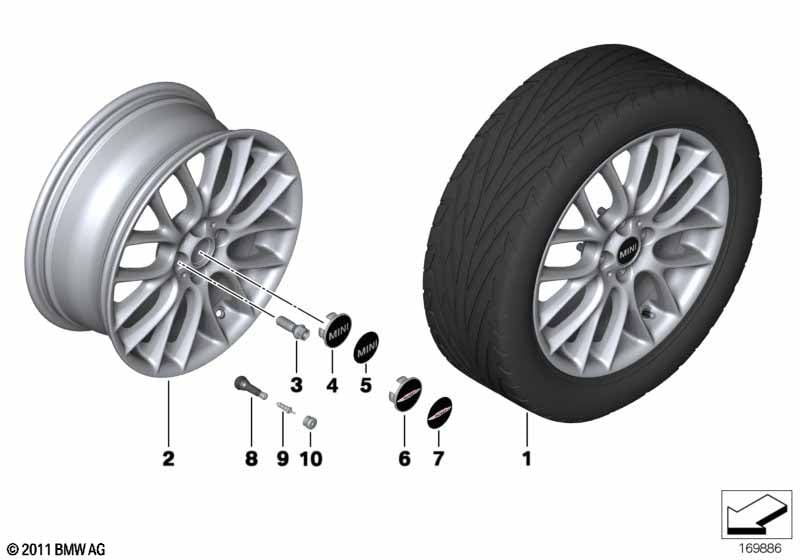

This Obr. JCW st. le. Cross Spoke Chall. R112 technical drawing provides a detailed breakdown of the assembly for the MINI R50 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2004.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Dla samochodów z Obr. MINI, st. le.,Cross Spoke Challenge lub Obr. MINI, st. le.,Cross Spoke Challenge lub 17" LA cross spoke challenge R112 |
S2P8A=Tak S2PXA=Tak SZV9A=Tak |
||||||||
| 02 | Obręcz koła aluminiowa, srebrna | 7JX17 ET:48 | 4 | 07/2004 | 36116784130 | $322.54 | Shop at ECS Tuning | |||
| tylko w połączeniu z | ||||||||||
| 02 | Obręcz koła aluminiowa, czarna | 7JX17 ET:48 | 4 | 07/2004 | 36116795208 | Shop at ECS Tuning | ||||
| tylko w połączeniu z | ||||||||||
| -- | Kpl. elem. dod. do nadkola tylnego | 1 | 07/2004 | 51120141894 | $23.75 | Zakończono | Shop at ECS Tuning | |||
| 03 | Śruba koła czarna | M14X1,25 | 16 | 36136890324 | Shop at ECS Tuning | |||||
| 04 | Pokrywa piasty MINI | D=53.9MM | 4 | 36131171069 | $4.87 | Shop at ECS Tuning | ||||
| 05 | Plakietka MINI z folią samoprzylepną | 4 | 36136758687 | $3.58 | Shop at ECS Tuning | |||||
| 06 | Pokrywa piasty J.Cooper Works | D=53.9MM | 4 | 36136778917 | $10.75 | Shop at ECS Tuning | ||||
| 07 | Plakiet. z folią samoprz. J.Cooper Works | 4 | 36136765999 | $3.66 | Zakończono | Shop at ECS Tuning | ||||
| 08 | Zawór gumowy | L=42,5MM | 4 | 36121116326 | $3.30 | Shop at ECS Tuning | ||||
| 09 | Zawór | 4 | 36141095389 | $1.38 | Shop at ECS Tuning | |||||
| 10 | Zakrętka zaworu | 4 | 36121120779 | $0.60 | Shop at ECS Tuning | |||||
Uwagi
- Zakończono = część wycofana z produkcji.
