JCW LM Rad Cross Spoke R113 for BMW MINI R50 Cooper (2004)

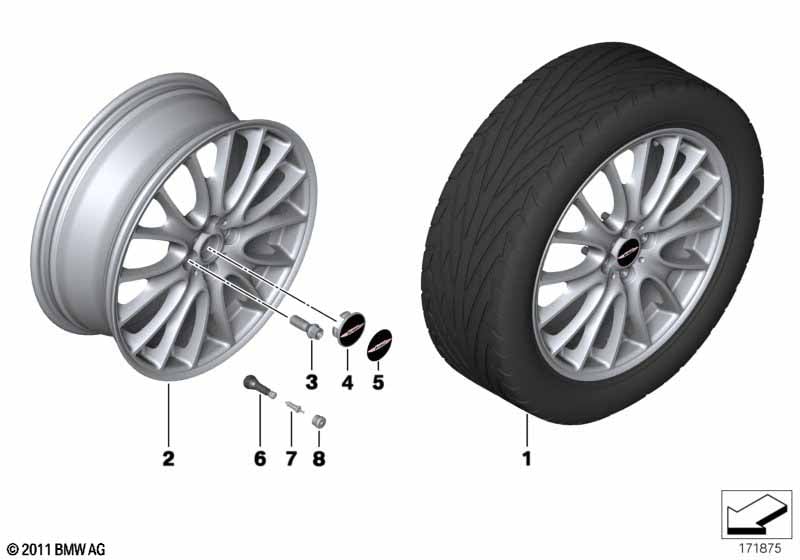

This JCW LM Rad Cross Spoke R113 technical drawing provides a detailed breakdown of the assembly for the MINI R50 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2004.

JCW LM Rad Cross Spoke R113
Nr. Opis Uzupełnienie Ilość  Od   Do  Numer części Cena Uwagi
  i Dla samochodów z
18" light alloy cross spoke R113
SZV0A=Tak
02 Obr. bezszp. z met. lekk. poł. czarna 7JX18 ET:52 4 07/2004 36116784136 $395.09 Zakończono Shop at ECS Tuning
tylko w połączeniu z
02 Obręcz koła aluminiowa, czarna 7X18 ET:52 4 07/2004 36116785304 $382.14 Zakończono Shop at ECS Tuning
tylko w połączeniu z
02 Obręcz koła aluminiowa 7JX18 ET:52 4 07/2004 36106850209 Zakończono Shop at ECS Tuning
tylko w połączeniu z
-- Kpl. elem. dod. do nadkola tylnego 1 07/2004 51120141894 $23.75 Zakończono Shop at ECS Tuning
-- Zest. dopos. - ogr. kąta skrętu 1 07/2004 32110303293 $27.95 Shop at ECS Tuning
03 Śruba koła czarna M14X1,25 16 36136890324 Shop at ECS Tuning
04 Pokrywa piasty J.Cooper Works D=53.9MM 4 36136778917 $10.75 Shop at ECS Tuning
05 Plakiet. z folią samoprz. J.Cooper Works 4 36136786764 Shop at ECS Tuning
06 Zawór gumowy L=42,5MM 4 36121116326 $3.30 Shop at ECS Tuning
07 Zawór 4 36141095389 $1.38 Shop at ECS Tuning
08 Zakrętka zaworu 4 36121120779 $0.60 Shop at ECS Tuning
Uwagi
  • Zakończono = część wycofana z produkcji.
