Styl. TD (styl.7) for BMW 7 Series E32 730i (1986)

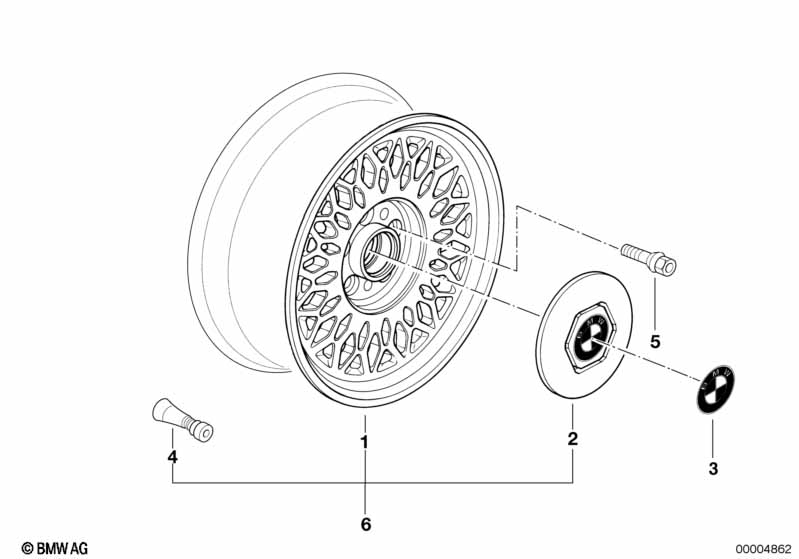

This Styl. TD (styl.7) technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 730i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1986.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Obręcz koła aluminiowa | 390X180TD ET:19 | 4 | 36111180991 | $459.79 | TÜV 0006731, ABE 9783762 | Shop at ECS Tuning | |||
| 02 | Kołpak | D=169MM | 4 | 36131180113 | $19.50 | Shop at ECS Tuning | ||||
| 03 | Emblemat BMW, wytłacz., z folią samop. | D=64,5MM | 4 | 36131181080 | $6.90 | Shop at ECS Tuning | ||||
| 04 | Zawór gumowy | L=42,5MM | 4 | 36121116326 | $3.30 | Shop at ECS Tuning | ||||
| 05 | Śruba koła czarna | M12X1,5 | X | 36136781150 | $3.21 | Shop at ECS Tuning |
Uwagi
- TÜV = Technischer Überwachungsverein (Neutralna organiz. nadzoru technicznego)
- ABE = Allgemeine Betriebserlaubnis (Ogólne dopuszczenie do ruchu)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E32 730i Styl. TD (styl.7)?
- This technical diagram illustrates the Styl. TD (styl.7) within the Koła group for the 7 Series E32 730i produced during 1986. It provides a detailed exploded view of the components, identifying key parts such as the Obręcz koła aluminiowa (Part #36111180991).
- Which models use the hardware listed in this Styl. TD (styl.7)?
- The hardware and components featured in the Styl. TD (styl.7) are specific to the 7 Series E32 730i produced during 1986. These technical specifications ensure that parts like the Obręcz koła aluminiowa (36111180991) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Styl. TD (styl.7) assembly?
- Each item in the Styl. TD (styl.7) corresponds to the numbered list below the illustration. For the 7 Series E32 730i, you can identify the Obręcz koła aluminiowa by locating its position on the schematic, which then links to the official BMW part number 36111180991 for the Koła section.
