Obr. MINI st. le. Rib Spoke 115 for BMW MINI R56 One (2008)

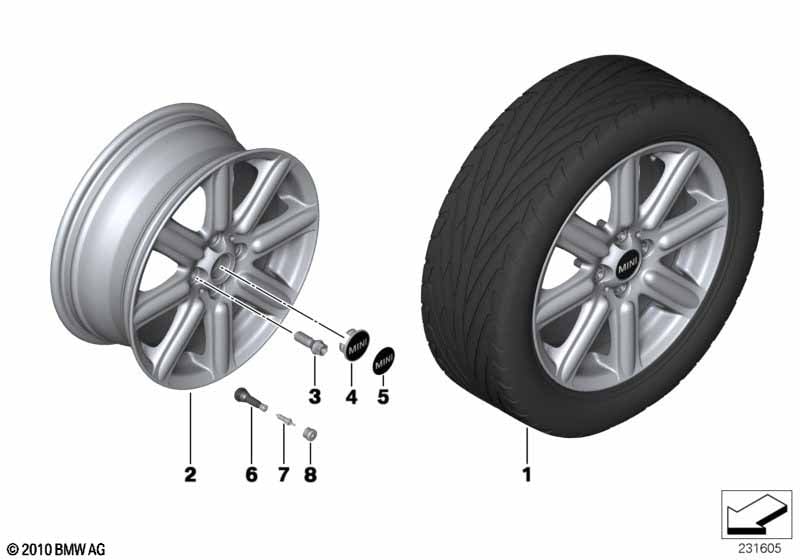

This Obr. MINI st. le. Rib Spoke 115 technical drawing provides a detailed breakdown of the assembly for the MINI R56 One. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2008.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Dla samochodów z Obr. MINI st. le. Rip Spoke |
S2P6A=Tak |
||||||||
| Dla samochodów z Sportowy układ hamulcowy |
SZZDA=Nie |
|||||||||
| 02 | Obręcz koła aluminiowa, srebrna | 61/2JX16 ET:48 | 4 | 36116791941 | +podst | Shop at ECS Tuning | ||||
| nie pasuje do | ||||||||||
| -- | Zest. dopos. - hamulec Sport | J. COOPER WORKS | X | 34110432802 | $1999.00 | Zakończono, +podst | Shop at ECS Tuning | |||
| 03 | Śruba koła czarna | M14X1,25 | 16 | 36136890324 | Shop at ECS Tuning | |||||
| 04 | Pokrywa piasty MINI | D=53.9MM | 4 | 36131171069 | $4.87 | Shop at ECS Tuning | ||||
| 05 | Plakietka MINI z folią samoprzylepną | 4 | 36136758687 | $3.58 | Shop at ECS Tuning | |||||
| 06 | Zawór gumowy | L=42,5MM | 4 | 07/2014 | 36121116326 | $3.30 | Shop at ECS Tuning | |||
| 07 | Zawór | 4 | 36141095389 | $1.38 | Shop at ECS Tuning | |||||
| 08 | Zakrętka zaworu | 4 | 07/2014 | 36121120779 | $0.60 | Shop at ECS Tuning | ||||
Uwagi
- +podst = plus opłata podstawowa (możliwość zwrócenia starej części).
- Zakończono = część wycofana z produkcji.
