Obr. BMW, st. le. szprycha gwiaz. 382 for BMW 1 Series F20 120d (2013)

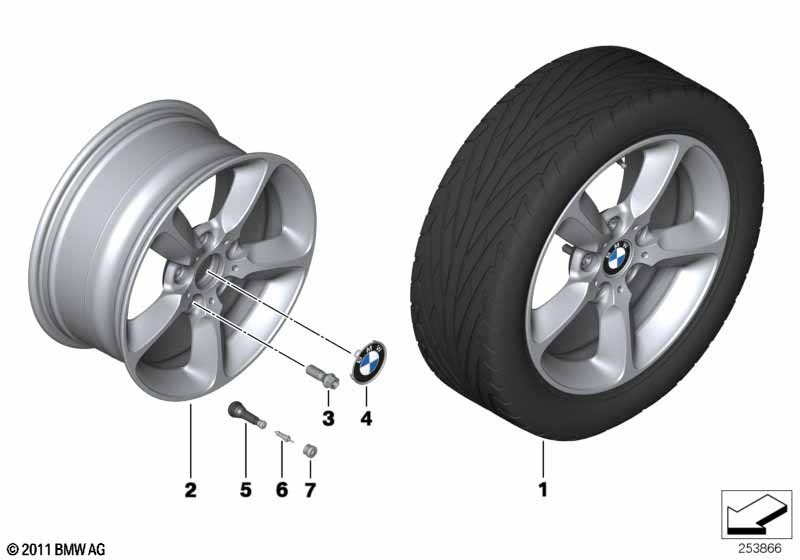

This Obr. BMW, st. le. szprycha gwiaz. 382 technical drawing provides a detailed breakdown of the assembly for the 1 Series F20 120d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2013.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Wskazówka: Tylko do samochodów z dopuszczeniem wg EGBE. Wybrane zestawienie kół/ opon może być wymagane jako wpis w dokumentach. Proszę sprawdzić w CoC pojazdu, czy wpisano zestawienie kół/opon. Gdyby tak nie było, to ewent. wymagane może być w zależności od kraju dodatkowe dopuszczenie krajowe!! Dla samochodów z Obr. BMW, st. le. szprycha gwiaz. 382 |
S2DUA=Tak |
||||||||
| Dla samochodów z Sportowy układ hamulcowy |
SZP1A=Nie |
|||||||||
| 02 | Obr. bezsz. z met. lekk. tocz. na połysk | 7,5JX17 ET:43 | 4 | 03/2014 | 36116796207 | Shop at ECS Tuning | ||||
| 02 | Obr. bezsz. z met. lekk. tocz. na połysk | 8JX17 ET:53 | 2 | 03/2014 | 36116796208 | Shop at ECS Tuning | ||||
| 03 | Śruba koła czarna | M14X1,25 | 20 | 03/2014 | 36136890324 | Shop at ECS Tuning | ||||
| 04 | Osłona piasty z chromowaną krawędzią | BMW | 4 | 03/2014 | 36136783536 | $9.95 | Shop at ECS Tuning | |||
| 05 | Zawór gumowy | L=42,5MM | 4 | 03/2014 | 36121116326 | $3.30 | Shop at ECS Tuning | |||
| 06 | Zawór | 4 | 03/2014 | 36141095389 | $1.38 | Shop at ECS Tuning | ||||
| 07 | Zakrętka zaworu | 4 | 03/2014 | 36121120779 | $0.60 | Shop at ECS Tuning | ||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 1 Series F20 120d Obr. BMW, st. le. szprycha gwiaz. 382?
- This technical diagram illustrates the Obr. BMW, st. le. szprycha gwiaz. 382 within the Koła group for the 1 Series F20 120d produced during 2013. It provides a detailed exploded view of the components, identifying key parts such as the Obr. bezsz. z met. lekk. tocz. na połysk (Part #36116796207).
- Which models use the hardware listed in this Obr. BMW, st. le. szprycha gwiaz. 382?
- The hardware and components featured in the Obr. BMW, st. le. szprycha gwiaz. 382 are specific to the 1 Series F20 120d produced during 2013. These technical specifications ensure that parts like the Obr. bezsz. z met. lekk. tocz. na połysk (36116796207) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Obr. BMW, st. le. szprycha gwiaz. 382 assembly?
- Each item in the Obr. BMW, st. le. szprycha gwiaz. 382 corresponds to the numbered list below the illustration. For the 1 Series F20 120d, you can identify the Obr. bezsz. z met. lekk. tocz. na połysk by locating its position on the schematic, which then links to the official BMW part number 36116796207 for the Koła section.
