Obr. BMW, st. le., spr. V 378 for BMW 1 Series F20 120d (2013)

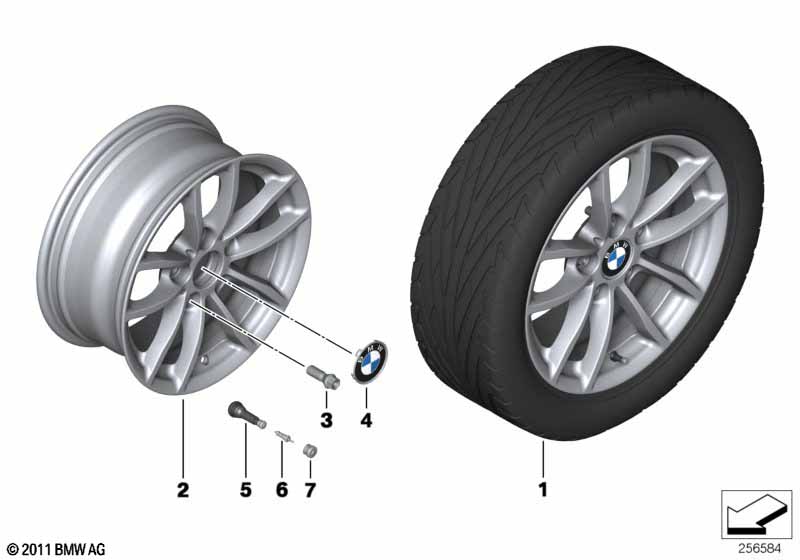

This Obr. BMW, st. le., spr. V 378 technical drawing provides a detailed breakdown of the assembly for the 1 Series F20 120d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2013.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Wskazówka: Tylko do samochodów z dopuszczeniem wg EGBE. Wybrane zestawienie kół/ opon może być wymagane jako wpis w dokumentach. Proszę sprawdzić w CoC pojazdu, czy wpisano zestawienie kół/opon. Gdyby tak nie było, to ewent. wymagane może być w zależności od kraju dodatkowe dopuszczenie krajowe!! Dla samochodów z Obr. BMW, st. le., spr. V 378 |
S2FDA=Tak |
||||||||
| Dla samochodów z Hamulec sportowy M i Sportowy układ hamulcowy |
S2NHA=Nie SZP1A=Nie |
|||||||||
| 02 | Koło tarczowe ze stopu lekk.Reflexsilber | 7JX16 ET:40 | 4 | 03/2014 | 36316796202 | Shop at ECS Tuning | ||||
| 03 | Śruba koła czarna | M14X1,25 | 20 | 03/2014 | 36136890324 | Shop at ECS Tuning | ||||
| 04 | Osłona piasty z chromowaną krawędzią | BMW | 4 | 03/2014 | 36136783536 | $9.95 | Shop at ECS Tuning | |||
| 05 | Zawór gumowy | L=42,5MM | 4 | 03/2014 | 36121116326 | $3.30 | Shop at ECS Tuning | |||
| 06 | Zawór | 4 | 03/2014 | 36141095389 | $1.38 | Shop at ECS Tuning | ||||
| 07 | Zakrętka zaworu | 4 | 03/2014 | 36121120779 | $0.60 | Shop at ECS Tuning | ||||
