Otwieranie drzwi /Zamek drzwi przedni for BMW 5 Series E12 518

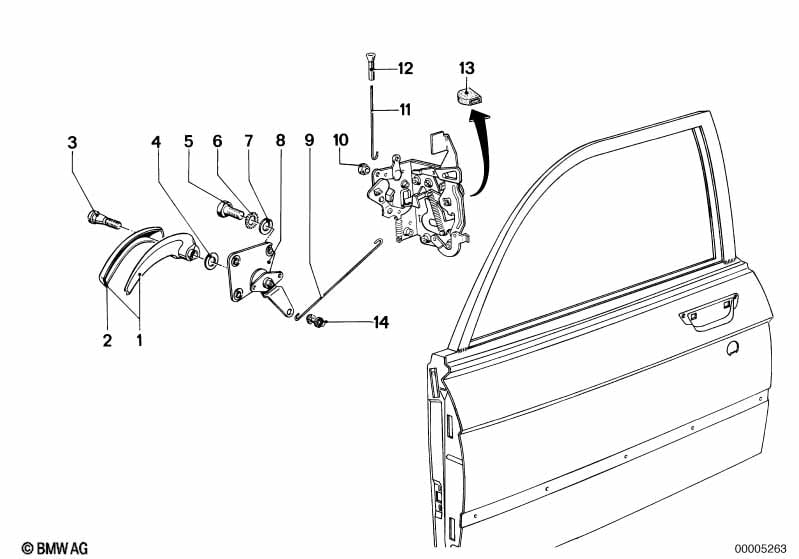

This Otwieranie drzwi /Zamek drzwi przedni technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 518. It includes part names, part numbers and all associated mounting hardware.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Uchwyt lewy | 1 | 51211806003 | $38.11 | Shop at ECS Tuning | |||||
| 01 | Uchwyt prawy | 1 | 51211806004 | $38.11 | Shop at ECS Tuning | |||||
| 02 | Osłona lewa | 1 | 51211803751 | $4.61 | Shop at ECS Tuning | |||||
| 02 | Osłona prawa | 1 | 51211803752 | $4.61 | Shop at ECS Tuning | |||||
| 03 | Śruba stożkowa | 2 | 51211800790 | $0.67 | Shop at ECS Tuning | |||||
| 04 | Osłona | 2 | 51211800789 | $0.55 | Shop at ECS Tuning | |||||
| 05 | Śruba sześciokątna | M5X8 | 6 | 07119913212 | $0.25 | Shop at ECS Tuning | ||||
| 06 | Podkładka zębata | A5,1 | 6 | 07119936107 | $0.18 | Shop at ECS Tuning | ||||
| 07 | Podkładka | 5.3-140 HV-ZNS | 6 | 07119936439 | $0.40 | Shop at ECS Tuning | ||||
| 08 | Element zdalny lewy | 1 | 51211800665 | $9.77 | Shop at ECS Tuning | |||||
| 08 | Element zdalny prawy | 1 | 51211800666 | $9.77 | Shop at ECS Tuning | |||||
| 09 | Drążek połączeniowy | 2 | 51211809599 | $6.79 | Zakończono | Shop at ECS Tuning | ||||
| 10 | Końcówka | 4 | 52208238999 | $0.40 | Shop at ECS Tuning | |||||
| 11 | Drążek | 2 | 51211808821 | $1.61 | Zakończono | Shop at ECS Tuning | ||||
| 12 | Przycisk | 2 | 51216654120 | $2.40 | Zakończono | Shop at ECS Tuning | ||||
| 13 | Odbojnik | 2 | 51211809735 | $1.36 | Shop at ECS Tuning | |||||
| 14 | Zabezpieczenie | 2 | 51221817032 | $0.31 | Shop at ECS Tuning |
Uwagi
- Zakończono = część wycofana z produkcji.
