Uszczelka drzwi tył for BMW 7 Series E32 740i (1992)

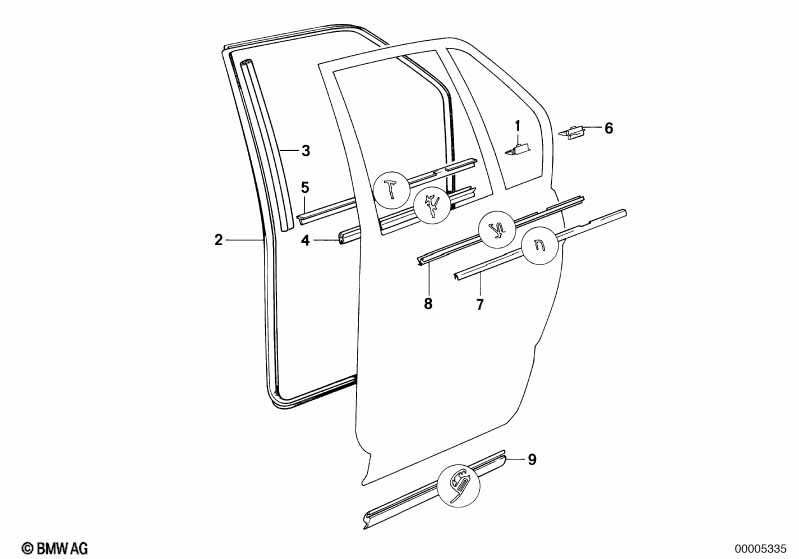

This Uszczelka drzwi tył technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 740i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1992.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Klamra | X | 51221938297 | $1.10 | Shop at ECS Tuning | |||||
| 02 | Uszczelka lewa | 1 | 51221928709 | $120.75 | Shop at ECS Tuning | |||||
| 02 | Uszczelka prawa | 1 | 51221928710 | $120.75 | Shop at ECS Tuning | |||||
| 03 | Prowadnica szyby tylnej lewej | 1 | 51348111203 | $139.98 | Shop at ECS Tuning | |||||
| 03 | Prowadnica szyby tylnej prawej | 1 | 51348111204 | $139.98 | Shop at ECS Tuning | |||||
| 04 | Uszczelka wewn. szyby drzwi, lewa | 1 | 51228105103 | $25.39 | Shop at ECS Tuning | |||||
| 04 | Uszczelka wewn. szyby drzwi, prawa | 1 | 51228105104 | $24.84 | Shop at ECS Tuning | |||||
| Dla samochodów z Oszklenie izolacyjne |
=Tak |
|||||||||
| 04 | Uszczelka wewn. szyby drzwi, lewa | 1 | 51228127557 | Shop at ECS Tuning | ||||||
| 04 | Uszczelka wewn. szyby drzwi, prawa | 1 | 51228127558 | Zakończono | Shop at ECS Tuning | |||||
| 05 | Listwa ochronna tylna lewa | CHROM | 1 | 51221928187 | $47.25 | Shop at ECS Tuning | ||||
| 05 | Listwa ochronna tylna prawa | CHROM | 1 | 51221928188 | $47.25 | Zakończono | Shop at ECS Tuning | |||
| 05 | Listwa ochronna tylna lewa | SCHWARZ | 1 | 51221969365 | $14.73 | Shop at ECS Tuning | ||||
| 05 | Listwa ochronna tylna prawa | SCHWARZ | 1 | 51221969366 | $14.73 | Shop at ECS Tuning | ||||
| 06 | Klamra | X | 51211928189 | $1.45 | Shop at ECS Tuning | |||||
| Dla samochodów z Roleta przeciwsłoneczna |
=Tak |
|||||||||
| 06 | Klamra | X | 51421945437 | $6.45 | Shop at ECS Tuning | |||||
| Dla samochodów z Roleta przeciwsłoneczna i Oszklenie izolacyjne |
=Tak =Tak |
|||||||||
| 06 | Klamra | X | 51428139765 | $4.69 | Shop at ECS Tuning | |||||
| 07 | Osłona lewa | CHROM | 1 | 51221928243 | $43.02 | Shop at ECS Tuning | ||||
| 07 | Osłona prawa | CHROM | 1 | 51221928244 | $43.02 | Shop at ECS Tuning | ||||
| 07 | Osłona lewa | SCHWARZ | 1 | 51221969351 | $45.20 | Shop at ECS Tuning | ||||
| 07 | Osłona prawa | SCHWARZ | 1 | 51221969352 | $45.20 | Zakończono | Shop at ECS Tuning | |||
| 08 | Uszczelka zewn. szyby drzwi, lewa | 1 | 51221928261 | $36.93 | Zakończono | Shop at ECS Tuning | ||||
| 08 | Uszczelka zewn. szyby drzwi, prawa | 1 | 51221928262 | $36.93 | Zakończono | Shop at ECS Tuning | ||||
| 09 | Osłona lewa | 1 | 51221928041 | $26.57 | Shop at ECS Tuning | |||||
| 09 | Osłona prawa | 1 | 51221928042 | $26.57 | Shop at ECS Tuning | |||||
Uwagi
- Zakończono = część wycofana z produkcji.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E32 740i Uszczelka drzwi tył?
- This technical diagram illustrates the Uszczelka drzwi tył within the Elementy blasz. karoserii group for the 7 Series E32 740i produced during 1992. It provides a detailed exploded view of the components, identifying key parts such as the Klamra (Part #51221938297).
- Which models use the hardware listed in this Uszczelka drzwi tył?
- The hardware and components featured in the Uszczelka drzwi tył are specific to the 7 Series E32 740i produced during 1992. These technical specifications ensure that parts like the Klamra (51221938297) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Uszczelka drzwi tył assembly?
- Each item in the Uszczelka drzwi tył corresponds to the numbered list below the illustration. For the 7 Series E32 740i, you can identify the Klamra by locating its position on the schematic, which then links to the official BMW part number 51221938297 for the Elementy blasz. karoserii section.
