Konstrukcja przednia, uchwyt lewy for BMW 7 Series E65 745i (2003)

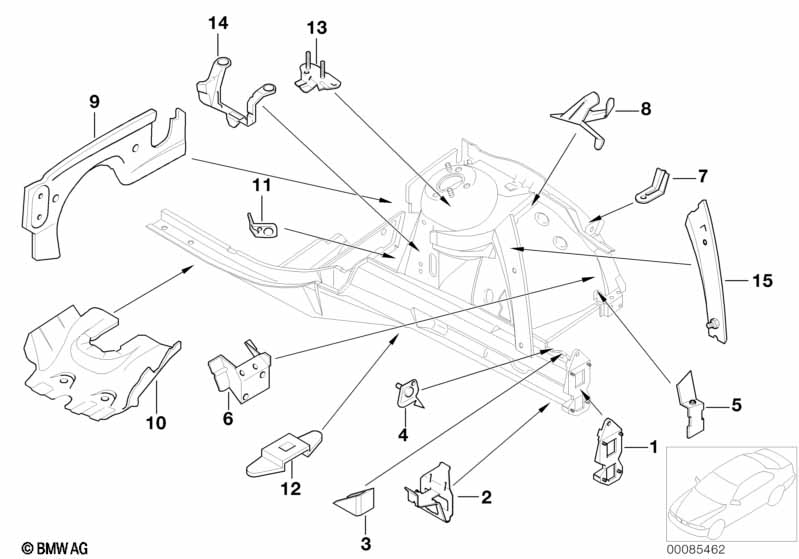

This Konstrukcja przednia, uchwyt lewy technical drawing provides a detailed breakdown of the assembly for the 7 Series E65 745i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Mocowanie belki poprzecznej, lewe | 1 | 41117044667 | $17.97 | Zakończono | Shop at ECS Tuning | ||||
| 02 | Uchwyt chłodnicy wody | 1 | 41117000365 | $1.65 | Shop at ECS Tuning | |||||
| 03 | Wspornik lewy | 1 | 41147044665 | $5.37 | Zakończono | Shop at ECS Tuning | ||||
| 04 | Uchwyt zbiornika płynu, przedni | 1 | 41117012701 | $2.30 | Zakończono | Shop at ECS Tuning | ||||
| 05 | Uchwyt przedniej ścianki, lewy | 1 | 41117025299 | $2.30 | Zakończono | Shop at ECS Tuning | ||||
| 06 | Uchwyt zbiornika płynu, tylny | 1 | 41117012704 | $3.42 | Zakończono | Shop at ECS Tuning | ||||
| 07 | Uchwyt błotnika lewego | 1 | 41118240247 | $3.23 | Zakończono | Shop at ECS Tuning | ||||
| 08 | Uchwyt elastycznego przewodu ham., lewy | 1 | 41117001505 | $3.23 | Zakończono | Shop at ECS Tuning | ||||
| 09 | Blacha zamyk. komory silnika, lewa | 1 | 41137176643 | $27.19 | Zakończono | Shop at ECS Tuning | ||||
| 10 | Wspornik łoża silnika, dolny lewy | 1 | 41117044653 | $7.95 | Zakończono | Shop at ECS Tuning | ||||
| 11 | Uchwyt zbiornika oleju, dolny | 1 | 41117024661 | $2.30 | Zakończono | Shop at ECS Tuning | ||||
| 12 | Uchwyt połączenia wtykowego | 2 | 41117045593 | $2.30 | Zakończono | Shop at ECS Tuning | ||||
| 13 | Uchwyt zbiornika oleju, górny | 1 | 41117023999 | $3.42 | Zakończono | Shop at ECS Tuning | ||||
| 14 | Uchwyt zaworu wody | 1 | 41118268401 | $4.53 | Zakończono | Shop at ECS Tuning | ||||
| 15 | Wspornik skośny, lewy | 1 | 41117044649 | $34.59 | Zakończono | Shop at ECS Tuning |
Uwagi
- Zakończono = część wycofana z produkcji.
