Szkielet boczny, elementy pojed. for BMW 7 Series E65 745i (2003)

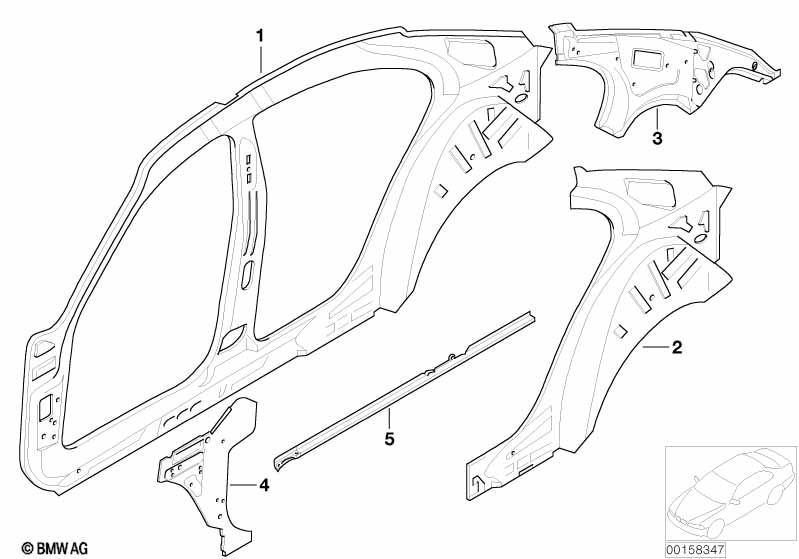

This Szkielet boczny, elementy pojed. technical drawing provides a detailed breakdown of the assembly for the 7 Series E65 745i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Rama boczna wewnętrzna lewa | 1 | 41217044857 | $1311.75 | Zakończono | Shop at ECS Tuning | ||||
| 01 | Rama boczna wewnętrzna prawa | 1 | 41217044858 | $1311.75 | Zakończono | Shop at ECS Tuning | ||||
| 02 | Wnęka koła, tylna lewa | 1 | 41217044861 | $226.87 | Zakończono | Shop at ECS Tuning | ||||
| 02 | Wnęka koła, tylna prawa | 1 | 41217044862 | $226.87 | Zakończono | Shop at ECS Tuning | ||||
| 03 | Wzmocnienie słupka C wewn. lewe | 1 | 41217044867 | $114.23 | Zakończono | Shop at ECS Tuning | ||||
| tylko w połączeniu z Kształtka |
||||||||||
| 03 | Wzmocnienie słupka C wewn. prawe | 1 | 41217044868 | $114.23 | Zakończono | Shop at ECS Tuning | ||||
| tylko w połączeniu z Kształtka |
||||||||||
| 04 | Słupek A wewn. lewy | 1 | 41217044415 | $110.58 | Zakończono | Shop at ECS Tuning | ||||
| 04 | Słupek A wewn. prawy | 1 | 41217044416 | $110.58 | Zakończono | Shop at ECS Tuning | ||||
| 05 | Nasadka progu, wewn. lewa | 1 | 41217044865 | $34.03 | Zakończono | Shop at ECS Tuning | ||||
| 05 | Nasadka progu, wewn. prawa | 1 | 41217044866 | $34.03 | Zakończono | Shop at ECS Tuning | ||||
Uwagi
- Zakończono = część wycofana z produkcji.
