dach for BMW 7 Series E65 745i (2003)

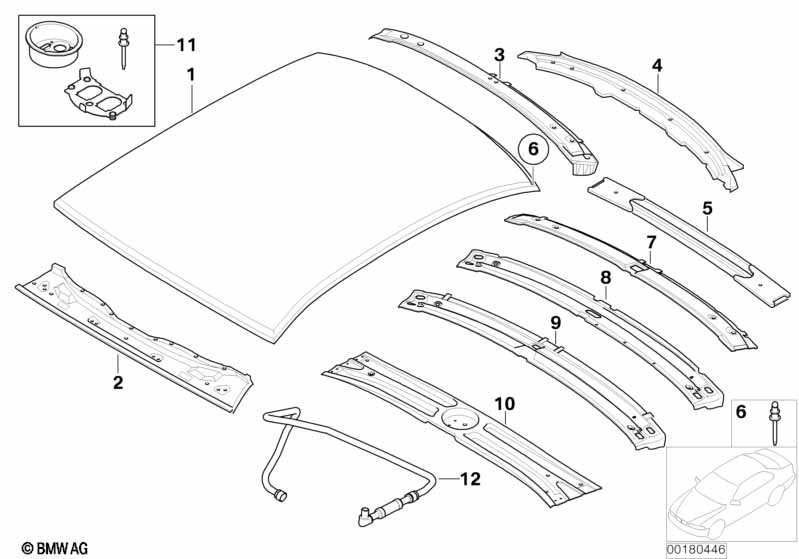

This dach technical drawing provides a detailed breakdown of the assembly for the 7 Series E65 745i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Poszycie dachu | 1 | 03/2003 | 41327126252 | $1118.35 | Zakończono | Shop at ECS Tuning | |||
| Konieczne do naprawy | ||||||||||
| -- | Przy.pom.do pozycj.sworz.z łbem teowym | 1 | 03/2003 | 41222460177 | Shop at ECS Tuning | |||||
| -- | Trzpień spawany T | L=5,4MM | 20 | 03/2003 | 41318412638 | Shop at ECS Tuning | ||||
| 01 | Poszycie dachu przesuwno-uchylnego | 1 | 03/2003 | 41327126258 | $1259.92 | Zakończono | Shop at ECS Tuning | |||
| Konieczne do naprawy | ||||||||||
| -- | Przy.pom.do pozycj.sworz.z łbem teowym | 1 | 03/2003 | 41222460177 | Shop at ECS Tuning | |||||
| -- | Trzpień spawany T | L=5,4MM | 20 | 03/2003 | 41318412638 | Shop at ECS Tuning | ||||
| 02 | El. konstrukcji ramowej górny | 1 | 41327044871 | $108.79 | Zakończono | Shop at ECS Tuning | ||||
| 03 | Rama tylnej szyby, górna | 1 | 41217122010 | $114.23 | Zakończono | Shop at ECS Tuning | ||||
| 04 | Rama tylnej szyby, dolna | 1 | 41327044873 | $60.29 | Zakończono | Shop at ECS Tuning | ||||
| 05 | El. wzmocnienia dachu | 1 | 41327044880 | $76.19 | Zakończono | Shop at ECS Tuning | ||||
| Grubość materiału / strefa zacisku 2,5 - 6,0mm |
||||||||||
| 06 | Nit naprawczy do sworznia T | 2,4X8,5MM | X | 07148497788 | Shop at ECS Tuning | |||||
| Grubość materiału / strefa zacisku 0,8 - 2,5mm |
||||||||||
| 06 | Nit naprawczy do sworznia T | 2,4X5MM | X | 07/2005 | 07147075520 | $3.46 | Zakończono | Shop at ECS Tuning | ||
| 06 | Nit naprawczy do sworznia T | 2,4X5MM | X | 07148497787 | Zakończono | Shop at ECS Tuning | ||||
Uwagi
- Zakończono = część wycofana z produkcji.
