Klapa przednia/Elementy dod. for BMW 7 Series E65 745i (2003)

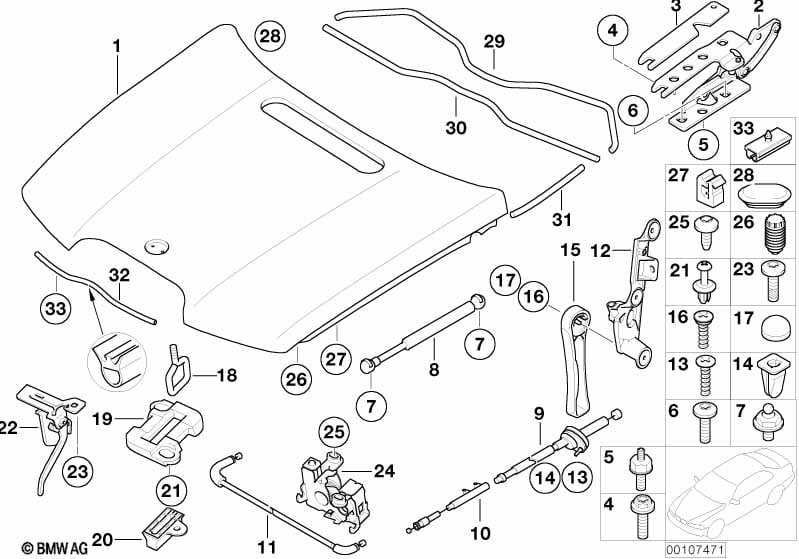

This Klapa przednia/Elementy dod. technical drawing provides a detailed breakdown of the assembly for the 7 Series E65 745i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Pokrywa silnika | 1 | 03/2005 | 41617043239 | $1482.18 | Shop at ECS Tuning | ||||
| 02 | Zawias pokrywy silnika, lewy | 1 | 07/2008 | 41617210671 | $47.35 | Shop at ECS Tuning | ||||
| 02 | Zawias pokrywy silnika, prawy | 1 | 07/2008 | 41617210672 | $47.35 | Shop at ECS Tuning | ||||
| 02 | Zawias pokrywy silnika, lewy | 1 | 41617210671 | $47.35 | Shop at ECS Tuning | |||||
| 02 | Zawias pokrywy silnika, prawy | 1 | 41617210672 | $47.35 | Shop at ECS Tuning | |||||
| 03 | Płytka wyrównawcza | 1,0MM | X | 09/2007 | 41617035250 | $3.07 | Zakończono | Shop at ECS Tuning | ||
| 03 | Płytka wyrównawcza | 1,5MM | X | 09/2007 | 41617116075 | $2.98 | Zakończono | Shop at ECS Tuning | ||
| 03 | Płytka wyrównawcza | 1,0MM | X | 41617194842 | $4.40 | Shop at ECS Tuning | ||||
| 03 | Płytka wyrównawcza | 1,5MM | X | 41617194843 | $2.67 | Shop at ECS Tuning | ||||
| 03 | Płytka wyrównawcza | 2,0MM | X | 41617194844 | Zakończono | Shop at ECS Tuning | ||||
| 04 | Śruba z podkładką | ISA M8X23 | 4 | 07147172616 | $0.71 | Shop at ECS Tuning | ||||
| 05 | Sworzeń uziemiający | M8X22/M6X11 | 1 | 41618266507 | $1.77 | Shop at ECS Tuning | ||||
| 06 | Śruba Torx z podkładką | ISA M8X24 | 3 | 07149137069 | Shop at ECS Tuning | |||||
| 06 | Śruba Torx z podkładką | ISA M8X24 | 3 | 41618208426 | $0.78 | Zakończono | Shop at ECS Tuning | |||
| 07 | Trzpień kulisty | M8X13,5MM | 2 | 51247010221 | $2.03 | Shop at ECS Tuning | ||||
| 08 | Siłownik pneumatyczny pokrywy silnika | 160N | 2 | 51238240596 | $43.62 | Shop at ECS Tuning | ||||
| 09 | Cięgno tylne | 1 | 51237197474 | $16.53 | Shop at ECS Tuning | |||||
| 10 | Cięgno przednie | 1 | 51238240608 | $16.53 | Shop at ECS Tuning | |||||
| 11 | Cięgno środkowe | 1 | 51238240609 | $16.53 | Shop at ECS Tuning | |||||
| 12 | Uchwyt | 1 | 51237023992 | $13.56 | Shop at ECS Tuning | |||||
| 13 | Blachowkręt | ST4,8X19MM | 3 | 07119904350 | Shop at ECS Tuning | |||||
| 14 | Nakrętka | 7X7 MM | 3 | 65138387414 | $0.47 | Shop at ECS Tuning | ||||
| 15 | Dźwignia otw. pokrywy silnika | DARK SILVER | 1 | 51238240607 | $4.50 | Shop at ECS Tuning | ||||
| 16 | Wkręt do tworz. szt. | TS 5X13 | 1 | 07146959892 | $0.30 | Shop at ECS Tuning | ||||
| 17 | Pokrywka | SCHWARZ | 1 | 51181823474 | $0.21 | Shop at ECS Tuning | ||||
| 18 | Zaczep zamka | 2 | 03/2005 | 51238240331 | $6.03 | Shop at ECS Tuning | ||||
| 19 | Czop centrujący | 1 | 51237002017 | $15.74 | Zakończono | Shop at ECS Tuning | ||||
| 20 | Zabezpieczenie przed skręcaniem | 2 | 03/2005 | 51237002012 | $4.23 | Shop at ECS Tuning | ||||
| 21 | Nit rozprężny | 2 | 51168197908 | $0.37 | Shop at ECS Tuning | |||||
| 22 | Zaczep pokrywy silnika | 1 | 03/2005 | 51237186508 | $47.67 | +podst | Shop at ECS Tuning | |||
| 23 | Śruba soczewkowa | 2 | 41617065161 | $0.72 | Shop at ECS Tuning | |||||
| 24 | Zamek pokrywy silnika | 2 | 51238240599 | $32.55 | +podst | Shop at ECS Tuning | ||||
| 25 | Śruba Torx z podkładką | ISA M6X25 | 4 | 51248131868 | $2.38 | Shop at ECS Tuning | ||||
| 26 | Odbojnik | 2 | 51248254063 | $1.35 | Shop at ECS Tuning | |||||
| 27 | Odbojnik | 2 | 51238247699 | $1.02 | Shop at ECS Tuning | |||||
| 28 | Zaślepka | 19,6X5,8MM | 1 | 51718163996 | $0.40 | Shop at ECS Tuning | ||||
| 29 | Uszczelka pokrywy silnika, tylna | 1 | 51718240739 | $28.68 | Shop at ECS Tuning | |||||
| 30 | Uszczelka pokrywy silnika środkowa | 1 | 51718240742 | $28.68 | Shop at ECS Tuning | |||||
| 32 | Uszczelka pokrywy silnika, przednia | 1 | 51717061915 | $23.38 | Shop at ECS Tuning | |||||
| 33 | Zaczep | GRAU | 8 | 51717006757 | $0.61 | Shop at ECS Tuning |
Uwagi
- Zakończono = część wycofana z produkcji.
- +podst = plus opłata podstawowa (możliwość zwrócenia starej części).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E65 745i Klapa przednia/Elementy dod.?
- This technical diagram illustrates the Klapa przednia/Elementy dod. within the Elementy blasz. karoserii group for the 7 Series E65 745i produced during 2003. It provides a detailed exploded view of the components, identifying key parts such as the Pokrywa silnika (Part #41617043239).
- Which models use the hardware listed in this Klapa przednia/Elementy dod.?
- The hardware and components featured in the Klapa przednia/Elementy dod. are specific to the 7 Series E65 745i produced during 2003. These technical specifications ensure that parts like the Pokrywa silnika (41617043239) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Klapa przednia/Elementy dod. assembly?
- Each item in the Klapa przednia/Elementy dod. corresponds to the numbered list below the illustration. For the 7 Series E65 745i, you can identify the Pokrywa silnika by locating its position on the schematic, which then links to the official BMW part number 41617043239 for the Elementy blasz. karoserii section.
