Tylna klapa/poj. części for BMW 7 Series E65 745i (2003)

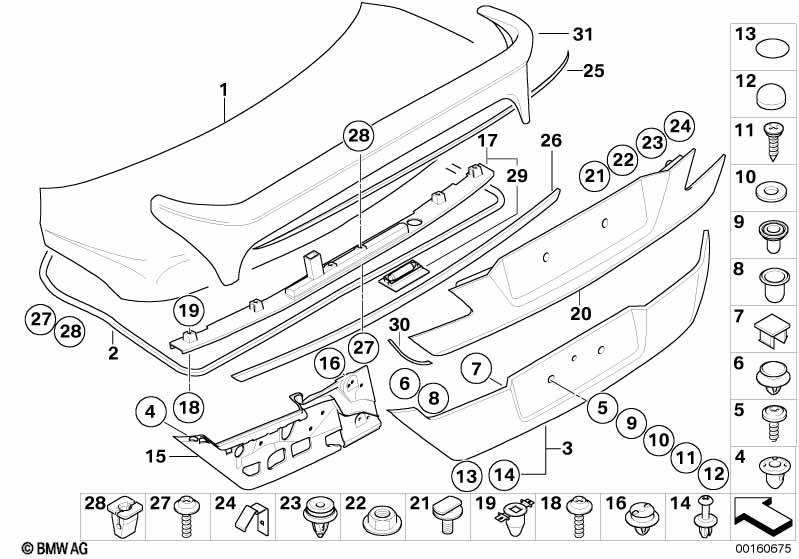

This Tylna klapa/poj. części technical drawing provides a detailed breakdown of the assembly for the 7 Series E65 745i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Pokrywa bagażnika | 1 | 03/2005 | 41627049252 | $798.88 | Zakończono | Shop at ECS Tuning | |||
| 02 | Uszczelka pokrywy bagażnika | 1 | 51717179970 | $63.88 | Shop at ECS Tuning | |||||
| Dla samochodów z Sterowanie mocowania tabl. rej. |
S992A=Tak |
|||||||||
| 03 | Osłona pokrywy bagażnika, gruntowana | 1 | 03/2005 | 51137042952 | $105.67 | Zakończono | Shop at ECS Tuning | |||
| tylko w połączeniu z | ||||||||||
| -- | Odbojnik gumowy | D = 11.1 | 2 | 03/2005 | 51311925433 | $1.10 | Shop at ECS Tuning | |||
| 04 | Nakrętka | 8X8 MM | 1 | 03/2005 | 51127020321 | $0.47 | Shop at ECS Tuning | |||
| 05 | Śruba Torx do tworzyw sztucznych | ISA TS5X16 | 1 | 07149113701 | $0.38 | Shop at ECS Tuning | ||||
| 06 | Klamra | 2 | 03/2005 | 51137037091 | $0.50 | Shop at ECS Tuning | ||||
| 07 | Zaczep | 6 | 03/2005 | 51137037092 | $0.44 | Shop at ECS Tuning | ||||
| 08 | Końcówka | 10 | 03/2005 | 51137028785 | $0.23 | Zakończono | Shop at ECS Tuning | |||
| 09 | Nakrętka | 4 | 51131961243 | $0.65 | Shop at ECS Tuning | |||||
| 10 | Podkładka | 4-200 HV-ZNS3 | 4 | 07119904207 | Shop at ECS Tuning | |||||
| 11 | Wkręt samogwintujący | ST4,8X16MM | 4 | 07143448498 | $0.18 | Shop at ECS Tuning | ||||
| 12 | Pokrywka | WEISS | 4 | 51181813017 | $0.21 | Shop at ECS Tuning | ||||
| 12 | Pokrywka | SCHWARZ | 4 | 51181823474 | $0.21 | Shop at ECS Tuning | ||||
| 13 | Folia uszczelniająca | PUR, D=30MM | 2 | 51711922189 | $0.82 | Shop at ECS Tuning | ||||
| Dla samochodów z Wersja krajowa Japonia |
L807A=Tak |
|||||||||
| 13 | Folia uszczelniająca | PUR, D=30MM | 2 | 51711922189 | $0.82 | Shop at ECS Tuning | ||||
| 14 | Nit rozprężny | 3 | 03/2005 | 51488353567 | $0.63 | Shop at ECS Tuning | ||||
| 15 | Uszczelka pokrywy bagażnika lewa | 1 | 03/2005 | 51137046529 | $19.98 | Zakończono | Shop at ECS Tuning | |||
| 15 | Uszczelka pokrywy bagażnika prawa | 1 | 03/2005 | 51137046530 | $19.98 | Zakończono | Shop at ECS Tuning | |||
| 16 | Zaczep | GRUN | 8 | 03/2005 | 51418101204 | $0.55 | Shop at ECS Tuning | |||
Uwagi
- Zakończono = część wycofana z produkcji.
