Uszczelka drzwi przednich for BMW 7 Series E65 745i (2003)

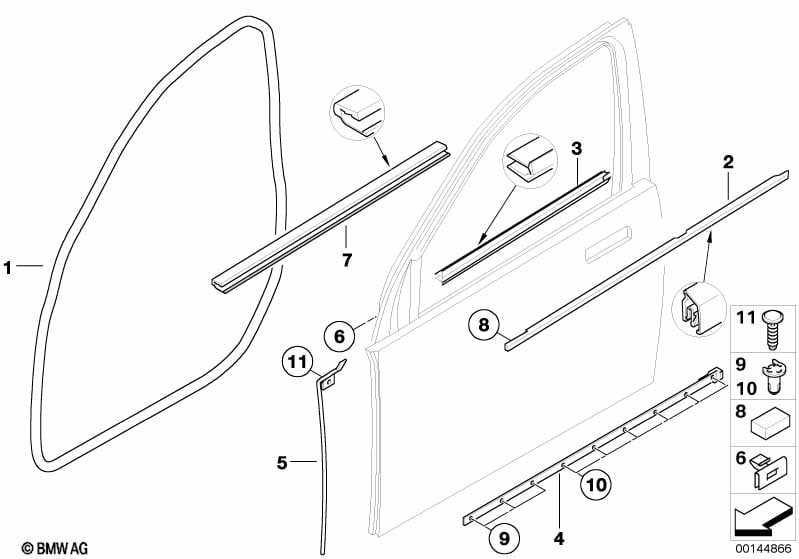

This Uszczelka drzwi przednich technical drawing provides a detailed breakdown of the assembly for the 7 Series E65 745i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Uszczelka drzwi przednich | 2 | 51218223659 | $134.18 | Zakończono | Shop at ECS Tuning | ||||
| 02 | Listwa uszczelniająca, zewn. lewa | CHROM | 1 | 51217010541 | $44.53 | Shop at ECS Tuning | ||||
| 02 | Listwa uszczelniająca, zewn. prawa | CHROM | 1 | 51217010542 | $44.53 | Shop at ECS Tuning | ||||
| Dla samochodów z Wysoki połysk Shadow-Line |
S760A=Tak |
|||||||||
| 02 | Listwa uszczelniająca, zewn. lewa | GLANZSCHWARZ | 1 | 03/2003 | 51218022205 | $64.20 | Shop at ECS Tuning | |||
| 02 | Listwa uszczelniająca, zewn. prawa | GLANZSCHWARZ | 1 | 03/2003 | 51218022206 | $64.20 | Shop at ECS Tuning | |||
| 03 | Listwa szyby, wewn. lewa | 1 | 51337044143 | $26.53 | Zakończono | Shop at ECS Tuning | ||||
| 03 | Listwa szyby, wewn. prawa | 1 | 51337044144 | $26.53 | Zakończono | Shop at ECS Tuning | ||||
| 04 | Uszcz. szcz. drzwi dolna, przednia lewa | 1 | 51218223663 | $26.84 | Shop at ECS Tuning | |||||
| 04 | Uszcz. szcz. drzwi dolna, przednia prawa | 1 | 51218223664 | $26.84 | Shop at ECS Tuning | |||||
| 05 | Uszczelka szcz. drzwi słupka A, lewa | 1 | 51218223661 | $53.68 | Zakończono | Shop at ECS Tuning | ||||
| 05 | Uszczelka szcz. drzwi słupka A, prawa | 1 | 51218223662 | $53.68 | Zakończono | Shop at ECS Tuning | ||||
| 06 | Klamra | 1,8MM | 1 | 51417022046 | $0.85 | Shop at ECS Tuning | ||||
| 06 | Klamra | 0,8MM | 5 | 51418240509 | $0.74 | Shop at ECS Tuning | ||||
| 07 | Listwa ochronna wewn., lewa | 1 | 51417024307 | $21.00 | Shop at ECS Tuning | |||||
| 07 | Listwa ochronna wewn., prawa | 1 | 51417024308 | $21.00 | Shop at ECS Tuning | |||||
| 08 | Taśma uszczelniająca | 2 | 51337120260 | $0.87 | Shop at ECS Tuning | |||||
| 09 | Zaczep | L=3,5MM | 6 | 51218202677 | $0.85 | Shop at ECS Tuning | ||||
| 10 | Zaczep | L=2,5MM | X | 51218202678 | $0.85 | Shop at ECS Tuning | ||||
| 11 | Zaczep | 2 | 51337025635 | $0.42 | Shop at ECS Tuning | |||||
Uwagi
- Zakończono = część wycofana z produkcji.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E65 745i Uszczelka drzwi przednich?
- This technical diagram illustrates the Uszczelka drzwi przednich within the Elementy blasz. karoserii group for the 7 Series E65 745i produced during 2003. It provides a detailed exploded view of the components, identifying key parts such as the Uszczelka drzwi przednich (Part #51218223659).
- Which models use the hardware listed in this Uszczelka drzwi przednich?
- The hardware and components featured in the Uszczelka drzwi przednich are specific to the 7 Series E65 745i produced during 2003. These technical specifications ensure that parts like the Uszczelka drzwi przednich (51218223659) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Uszczelka drzwi przednich assembly?
- Each item in the Uszczelka drzwi przednich corresponds to the numbered list below the illustration. For the 7 Series E65 745i, you can identify the Uszczelka drzwi przednich by locating its position on the schematic, which then links to the official BMW part number 51218223659 for the Elementy blasz. karoserii section.
