Uszczelka drzwi tył for BMW 7 Series E65 745i (2003)

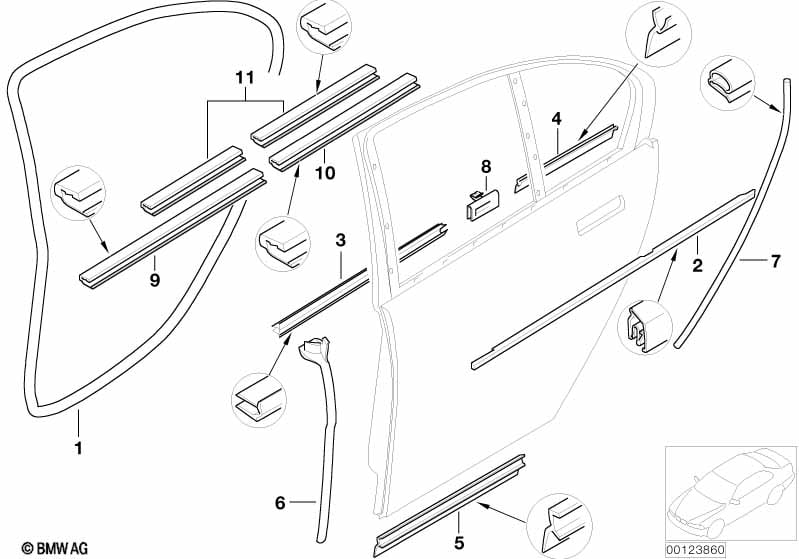

This Uszczelka drzwi tył technical drawing provides a detailed breakdown of the assembly for the 7 Series E65 745i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Uszczelka drzwi tył | 2 | 51228223703 | $134.18 | Zakończono | Shop at ECS Tuning | ||||
| 02 | Listwa uszczelniająca, zewn. lewa | CHROM | 1 | 51227010547 | $59.75 | Shop at ECS Tuning | ||||
| 02 | Listwa uszczelniająca, zewn. prawa | CHROM | 1 | 51227010548 | $59.75 | Shop at ECS Tuning | ||||
| Dla samochodów z Wysoki połysk Shadow-Line |
S760A=Tak |
|||||||||
| 02 | Listwa uszczelniająca, zewn. lewa | GLANZSCHWARZ | 1 | 03/2003 | 51228022207 | $64.20 | Shop at ECS Tuning | |||
| 02 | Listwa uszczelniająca, zewn. prawa | GLANZSCHWARZ | 1 | 03/2003 | 51228022208 | $64.20 | Shop at ECS Tuning | |||
| 03 | Listwa szyby, wewn. lewa | 1 | 51357044145 | $54.20 | Zakończono | Shop at ECS Tuning | ||||
| 03 | Listwa szyby, wewn. prawa | 1 | 51357044146 | $54.20 | Zakończono | Shop at ECS Tuning | ||||
| 04 | Listwa szyby, wewn. lewa | 1 | 51357004533 | $25.25 | Zakończono | Shop at ECS Tuning | ||||
| 04 | Listwa szyby, wewn. prawa | 1 | 51357004534 | $22.08 | Zakończono | Shop at ECS Tuning | ||||
| 05 | Uszcz. szcz. drzwi dolna, tyln. lewa | 1 | 51228223767 | $26.84 | Zakończono | Shop at ECS Tuning | ||||
| 05 | Uszcz. szcz. drzwi dolna, tyl. prawa | 1 | 51228223768 | $26.84 | Shop at ECS Tuning | |||||
| 06 | Uszczelka szcz. drzwi słupka B, lewa | 1 | 51228223759 | $53.68 | Zakończono | Shop at ECS Tuning | ||||
| 06 | Uszczelka szcz. drzwi słupka B, prawa | 1 | 51228223760 | $53.68 | Zakończono | Shop at ECS Tuning | ||||
| 07 | Uszczelka szcz. drzwi słupka C, lewa | 1 | 51228223763 | $53.68 | Zakończono | Shop at ECS Tuning | ||||
| 07 | Uszczelka szcz. drzwi słupka C, prawa | 1 | 51228223764 | $53.68 | Zakończono | Shop at ECS Tuning | ||||
| 08 | Klamra | 7 | 51167023919 | $0.74 | Zakończono | Shop at ECS Tuning | ||||
| 08 | Klamra | 1,8MM | 1 | 51417022046 | $0.85 | Shop at ECS Tuning | ||||
| 08 | Klamra | 0,8MM | 6 | 51418240509 | $0.74 | Shop at ECS Tuning | ||||
| Dla samochodów z Roleta przeciwsłoneczna tylna /boczna |
S416A=Tak |
|||||||||
| 09 | Listwa ochronna tylna wewn. lewa | 1 | 51428240429 | $51.35 | Shop at ECS Tuning | |||||
| 09 | Listwa ochronna tylna wewn. prawa | 1 | 51428240430 | $51.35 | Zakończono | Shop at ECS Tuning | ||||
| 10 | Listwa ochronna tylna wewn. lewa | 1 | 51428223745 | $19.65 | Zakończono | Shop at ECS Tuning | ||||
| 10 | Listwa ochronna tylna wewn. prawa | 1 | 51428223746 | $19.65 | Zakończono | Shop at ECS Tuning | ||||
| 11 | Listwa ochronna tylna wewn. lewa | 1 | 51427024491 | $19.65 | Zakończono | Shop at ECS Tuning | ||||
| 11 | Listwa ochronna tylna wewn. prawa | 1 | 51427024492 | $19.65 | Zakończono | Shop at ECS Tuning | ||||
Uwagi
- Zakończono = część wycofana z produkcji.
