Dno bagażnika/Wnęka koła tylna for BMW 7 Series E65 745i (2003)

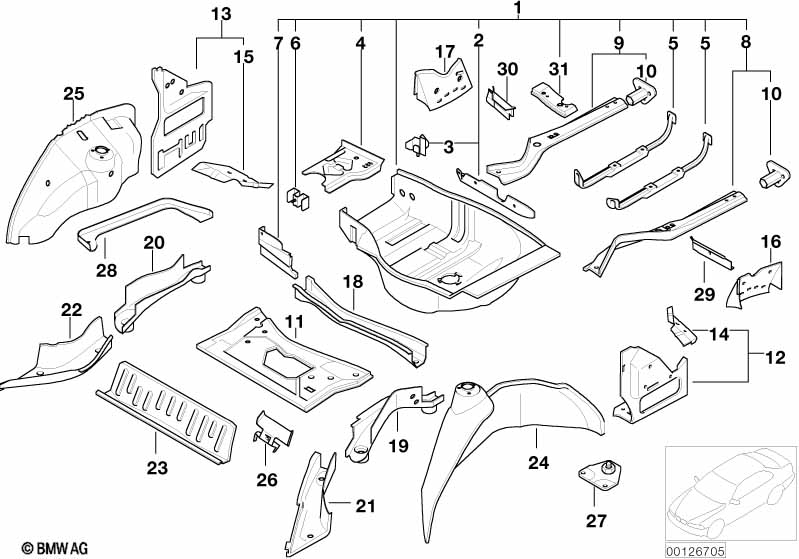

This Dno bagażnika/Wnęka koła tylna technical drawing provides a detailed breakdown of the assembly for the 7 Series E65 745i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| Nr. | Opis | Uzupełnienie | Ilość | Od | Do | Numer części | Cena | Uwagi | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Podłoga bagażnika | 1 | 41127044061 | $996.76 | Shop at ECS Tuning | |||||
| Konieczne do naprawy | ||||||||||
| -- | Masa uszczelniająca D2 | 290ML | 1 | 83425A547B9 | Shop at ECS Tuning | |||||
| tylko w połączeniu z Pos. 12+28+29 |
||||||||||
| 02 | Belka poprzeczna podłogi bagażn., tylna | 1 | 41127044079 | $89.90 | Zakończono | Shop at ECS Tuning | ||||
| 03 | Uchwyt tłumika tylnego | 2 | 41127044080 | $7.87 | Zakończono | Shop at ECS Tuning | ||||
| 04 | Podstawa pod akumulator | 1 | 41127044060 | $49.12 | Zakończono | Shop at ECS Tuning | ||||
| 05 | Mocowanie instalacji zasil. pow., lewe | 1 | 41127044065 | $32.81 | Zakończono | Shop at ECS Tuning | ||||
| 05 | Mocowanie instalacji zasil. pow., prawe | 1 | 41127044066 | $32.81 | Zakończono | Shop at ECS Tuning | ||||
| 06 | Uchwyt klina pod koła | 1 | 41127044067 | $4.97 | Zakończono | Shop at ECS Tuning | ||||
| 07 | Płyta zamykająca podł. bagażnika | 1 | 41127044068 | $7.87 | Zakończono | Shop at ECS Tuning | ||||
| 08 | Podłużnica lewa | 1 | 41117044069 | $175.60 | Zakończono | Shop at ECS Tuning | ||||
| 09 | Podłużnica prawa | 1 | 41117044070 | $181.87 | Zakończono | Shop at ECS Tuning | ||||
| 10 | Mocowanie belki poprzecznej zderz. | 2 | 41118238719 | $34.59 | Zakończono | Shop at ECS Tuning | ||||
| 11 | Podłoga bagażnika, przód | 1 | 41127044062 | $166.34 | Zakończono | Shop at ECS Tuning | ||||
| 12 | Przedłużenie wnęki koła lewe | 1 | 41147044063 | $84.19 | Shop at ECS Tuning | |||||
| 13 | Przedłużenie wnęki koła prawe | 1 | 41147044064 | $100.79 | Shop at ECS Tuning | |||||
| 14 | Płyta zamyk. pokrywy lamp tyln. lewa | 1 | 41147012071 | $3.85 | Zakończono | Shop at ECS Tuning | ||||
| 15 | Płyta zamyk. pokrywy lamp tyln. prawa | 1 | 41147012072 | $3.85 | Zakończono | Shop at ECS Tuning | ||||
| 16 | Wspornik podłogi bagażnika, lewy | 1 | 41117044083 | $34.30 | Zakończono | Shop at ECS Tuning | ||||
| 17 | Wspornik podłogi bagażnika, prawy | 1 | 41117044084 | $34.30 | Zakończono | Shop at ECS Tuning | ||||
| 18 | Belka tylna mocowania tylnej osi | 1 | 41117044076 | $255.73 | Zakończono | Shop at ECS Tuning | ||||
| 19 | Podłużnica mocowania ramy tylnej lewej | 1 | 41117044073 | $149.42 | Zakończono | Shop at ECS Tuning | ||||
| 20 | Podłużnica mocowania ramy tylnej prawej | 1 | 41117044074 | $149.42 | Zakończono | Shop at ECS Tuning | ||||
| 21 | Podłużnica mocowania ramy przed. lewej | 1 | 41117055871 | $108.88 | Zakończono | Shop at ECS Tuning | ||||
| 22 | Podłużnica mocowania ramy przed. prawej | 1 | 41117055872 | $108.88 | Zakończono | Shop at ECS Tuning | ||||
| 23 | Belka przednia mocowania tylnej osi | 1 | 41117044075 | $68.08 | Zakończono | Shop at ECS Tuning | ||||
| 24 | Wnęka koła wew. tylna lewa | 1 | 41147044071 | $382.87 | Zakończono | Shop at ECS Tuning | ||||
| 25 | Wnęka koła wew. tylna prawa | 1 | 41147044072 | $382.87 | Zakończono | Shop at ECS Tuning | ||||
| 26 | Uchwyt Isofix, lewy | 1 | 41117054325 | $3.73 | Shop at ECS Tuning | |||||
| 26 | Uchwyt Isofix, prawy | 1 | 41117054326 | $3.73 | Shop at ECS Tuning | |||||
| 27 | Sworzeń uziemiający | M8X12 | X | 07147182215 | Shop at ECS Tuning | |||||
| 27 | Sworzeń uziemiający | M6X12 | X | 41118367249 | $1.85 | Zakończono | Shop at ECS Tuning | |||
| 27 | Sworzeń uziemiający | M6X12 | X | 41248185432 | Shop at ECS Tuning | |||||
| 28 | Panel boczny podłogi bagażnika | 1 | 41128265578 | $55.25 | Zakończono | Shop at ECS Tuning | ||||
| 29 | Blacha zamykająca lewa | 1 | 41117061887 | $16.97 | Zakończono | Shop at ECS Tuning | ||||
| 30 | Blacha zamykająca prawa | 1 | 41117061888 | $16.97 | Zakończono | Shop at ECS Tuning | ||||
| 31 | Wzmocnienie podłużnicy prawe | 1 | 41117033126 | $7.87 | Zakończono | Shop at ECS Tuning | ||||
Uwagi
- Zakończono = część wycofana z produkcji.
